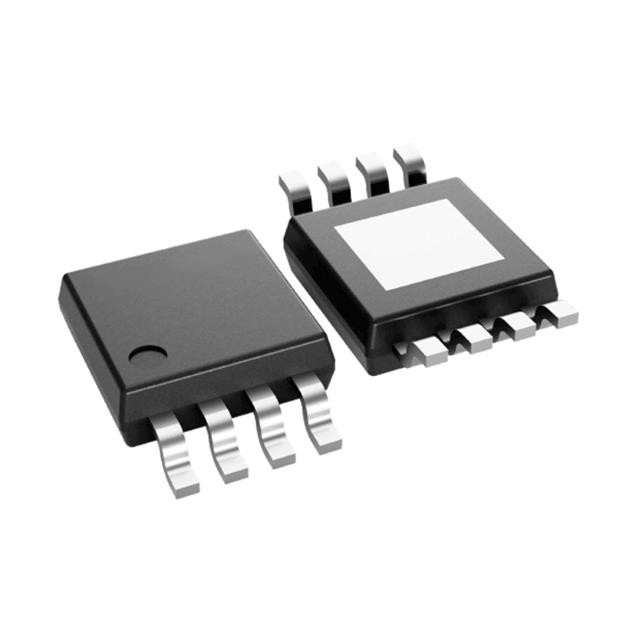

For picture reference, please see the specifications
< >

Commodity Model:OPA2892DGNR

Trade Name:Operational Amplifiers

Brand:TI

Particular Year:25+

Package:HVSSOP-8

Delivery Date:New and original

Stock: 4000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
OPA2892DGNR
Package
HVSSOP-8
Describe
Dual-channel, 2GHz, 10V/V stable 0.95nV√Hz operational amplifier

Product Description

The OPA2892DGNR is a dual-channel, 2GHz, 10V/V stable 0.95nV√Hz operational amplifier with ultra-low total harmonic distortion (THD). This amplifier has the following key parameters:

Amplifier type: Standard

Number of circuits: 2

Output type: Push-pull type

Pressure swing rate: 700V/µs

Gain-bandwidth product: 2 GHz

-3db bandwidth: 100 MHz

Current - Input bias: 9 µA

Voltage - Input compensation: 200 µV

Current - Power Supply: 7.5mA (x2 channels)

Current - Output/Channel: 200 mA

Voltage - Span (minimum value) : 9 V

Voltage - Span (maximum value) : 36 V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package/Shell: 8-PowerTSSOP


The OPA2892DGNR is an ultra-low voltage noise, high-speed voltage feedback amplifier, which is highly suitable for applications requiring low voltage noise (including communication and imaging). This amplifier can provide outstanding AC performance, with a bandwidth of 2 GHz, a slew rate of 700V/µs, a stabilization time of 30ns (0.1%), and a gain of 10V/V. This device remains stable when the gain is 10 or higher and -9 or lower.


The OPA2892DGNR has a total harmonic distortion (THD) of -68 DBC at f = 1MHz, specifically designed for applications requiring low distortion. Due to maintaining low distortion over a wide output voltage range, the OPA2892DGNR is suitable for large dynamic range applications such as imaging, sonar, and audio.
