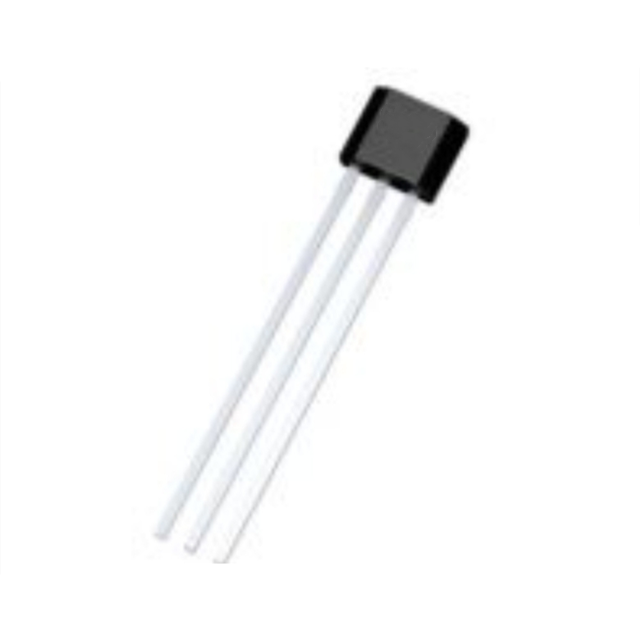

The TLV4968-1TA Hall latch is targeted for all applications that require high-precision Hall switches with an operating temperature range of -40°C to 125°C.

Technical Specification

Function: Latch, bipolar switch

Technology: Hall Effect

Polarization: South Pole

Sensing range: 2.3mT trip, -2.3mT release

Test conditions: 25°C

Voltage - Power supply: 3V to 26V

Current - Power supply (maximum value) : 2.5mA

Current - Output (maximum value) : 25mA

Output type: Open-circuit collector

Feature: Temperature compensation

Operating temperature: -40°C to 150°C

Installation type: Through hole

Supplier device packaging: TO-92S

The magnetic behavior of the latch and the typical ±1 mT switching threshold make this device particularly suitable for use with pole wheels in index counting applications, rotor position detection (such as commutation of brushless DC motors), and white goods or on/off detection.

Application fields of TLV4968-1TA

Brushless DC motors: such as those for dishwashers, washing machines, air conditioner compressors, or cooling fans for personal computers/home servers

In the automation of household power shut-off: such as sun visors, garage doors

Power tools and gardening equipment

On/off detection: such as in large household appliances or home security systems
