The TLE4963-2M is an integrated Hall effect sensor, specifically designed for high-precision applications. This sensor provides an easy-to-use and cost-effective solution for position sensing applications that require magnetic threshold high-temperature stability.

Key characteristics

Working voltage: 3.0V to 5.5V

Low current consumption: 1.4 mA

Electrostatic discharge protection: 4 kV HBM

Active error compensation (Chopping)

High stability of the magnetic threshold

Low jitter (typical value 0.35 μs)

Operating temperature range: -40°C to 125°C

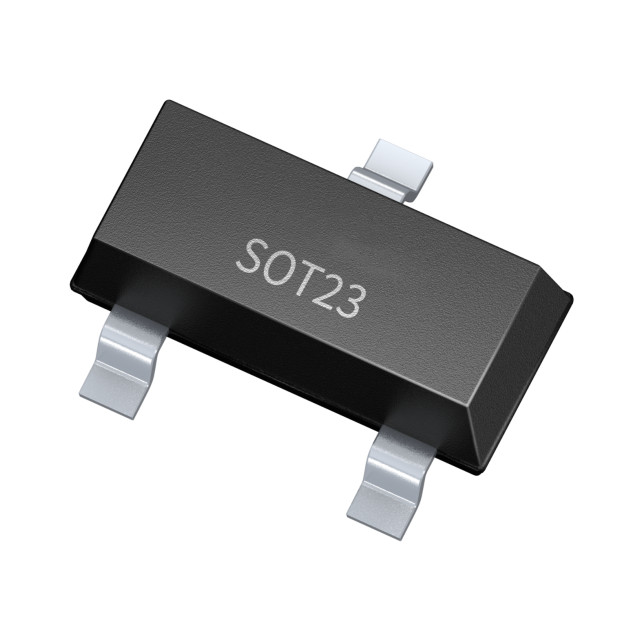

Small SMD package SOT23

JESD47 certification

Application field

The TLE4963-2M is particularly suitable for the following applications:

Brushless DC motor commutation ‌ : Used to reduce commutation in brushless DC motors

Power OFF in Automotive Automation ‌ : such as window regulators, sunroofs, etc

Position detection ‌ : such as switch position, gearshift position, etc

Other applications ‌ : diesel direct injection, household appliances, reversible seat belt pretensioners, automotive high-pressure electric compressors, hydraulic control of automatic transmissions, etc. ‌.
