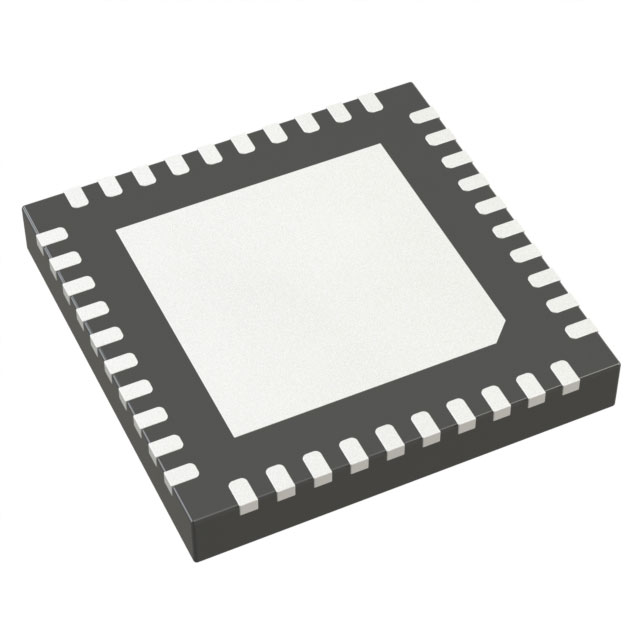

For picture reference, please see the specifications
< >

Commodity Model:AD9571ACPZPEC

Trade Name:Clock Generator

Brand:ADI

Particular Year:25+

Package:LFCSP-40

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9571ACPZPEC
Package
LFCSP-40
Describe
Ethernet clock generator, 10-channel clock output

Product Description

The AD9571ACPZPEC device features a multi-output clock generator function and is equipped with a dedicated PLL core, which is optimized for Ethernet line card applications. The integer N PLL design is based on ADI's mature high-performance, low-jitter frequency synthesizer product series to ensure high network performance. This device is also suitable for other applications with strict requirements for phase noise and jitter.


Main characteristics

Fully integrated with the VCO/PLL kernel

At 156.25 MHz, jitter value: 0.17 ps root mean square value (1.875 MHz to 20 MHz)

At 125 MHz, jitter value: 0.41 ps root mean square value (12 kHz to 20 MHz)

Input crystal oscillator or clock frequency: 25 MHz

For the preset frequency division ratios of 156.25 MHz, 33.33 MHz, 100 MHz and 125 MHz

Optional output formats include LVPECL or LVDS

Integrated loop filter

6-channel reference clock output

The rate is configured through the binding pin

Space-saving 6mm × 6mm, 40-pin LFCSP package

Power consumption: 0.48W (LVDS working mode)


Application field

The AD9571ACPZPEC is widely used in devices such as Ethernet line cards, switches and routers that require low jitter and low phase noise clock generation. It also works with SCSI, SATA and PCI express support devices such as ‌


Associated Products

Model

Brand

Package

Quantity

Describe

AD9571ACPZLVD

ADI

LFCSP-40

3000

Ethernet clock generator, 10-channel clock output

AD9575ARUZLVD

ADI

TSSOP-16

3000

Dual-output network clock generator

AD9576BCPZ

ADI

LFCSP-64

3000

Dual-channel PLL, asynchronous clock generator

AD9530BCPZ

ADI

LFCSP-48

3000

4-channel CML output integrated with 5.4GHz VCO and low-jitter clock generator

SI5351B-B02073-GMR

Skyworks

QFN-20

5000

I²C Programmable Arbitrary Frequency CMOS Clock Generator + VCXO

SI5338A-B-GM

Skyworks

QFN-24

2000

I 2C Programmable Arbitrary Frequency, Arbitrary Output Quad Clock Generator

CDCS504TPWRQ1

TI

TSSOP-8

5000

Clock Generator Clock buffer/clock m ultiplier 8-TSSOP

CY22393FXCT

Cypress

TSSOP-16

10000

Clock Generator, Fanout Distribution IC 200MHz 1 16-TSSOP (0.173", 4.40mm Width)

ZL30291LDF1

Microchip

UQFN-100

1800

CK440Q Compliant PCIe Gen 6 and Platform Timing Clock Generator

ZL30291LDG1

Microchip

UQFN-100

1800

CK440Q Compliant PCIe Gen 6 and Platform Timing Clock Generator
