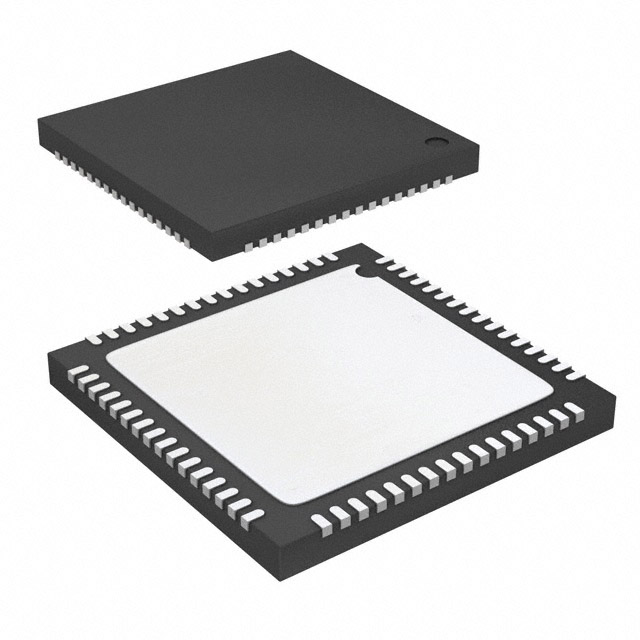

For picture reference, please see the specifications
< >

Commodity Model:AD9576BCPZ

Trade Name:Clock Generator

Brand:ADI

Particular Year:25+

Package:LFCSP-64

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9576BCPZ
Package
LFCSP-64
Describe
Dual-channel PLL, asynchronous clock generator

Product Description

The AD9576BCPZ is a dual-channel PLL, asynchronous clock generator, featuring two dedicated phase-locked loop (PLL) cores with flexible frequency conversion capabilities. Optimized to serve as a stable asynchronous clock source for the entire system, it automatically switches between redundant crystal (XTAL) inputs by monitoring them. It can extend the working life within the frequency tolerance range and reduce the switching induction transient to the lowest point at the same time. The decimal n-division PLL design is based on ADI's mature high-performance, low-jitter frequency synthesizer product series, ensuring high network performance. The integer N-division PLL provides a universal clock that can be used as a reference clock for cpus and field programmable gate arrays (FPgas).


Application field

The AD9576BCPZ is widely applied in the following fields:

Ethernet line cards, switches and routers

Baseband unit

SATA and PCI Express

Low jitter and low phase noise clock generation

Asynchronous clock generation


Technical Specification

Model: AD9576BCPZ

Type: Clock generator, Frequency synthesizer

PLL: Yes

Input: Clock, crystal

Output: CMOS, HCSL, HSTL, LVDS

Number of circuits: 1

Ratio - Input: Output: 3:11

Differential - Input: Output: Yes/Yes

Frequency - Maximum: 1.25GHz

Frequency divider/frequency multiplier: Yes/No

Voltage - Power supply: 2.38V to 3.63V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Shell: 64-LFCSP


Associated Products

Model

Brand

Package

Quantity

Describe

AD9571ACPZPEC

ADI

LFCSP-40

3000

Ethernet clock generator, 10-channel clock output

AD9571ACPZLVD

ADI

LFCSP-40

3000

Ethernet clock generator, 10-channel clock output

AD9575ARUZLVD

ADI

TSSOP-16

3000

Dual-output network clock generator

AD9530BCPZ

ADI

LFCSP-48

3000

4-channel CML output integrated with 5.4GHz VCO and low-jitter clock generator

SI5351B-B02073-GMR

Skyworks

QFN-20

5000

I²C Programmable Arbitrary Frequency CMOS Clock Generator + VCXO

SI5338A-B-GM

Skyworks

QFN-24

2000

I 2C Programmable Arbitrary Frequency, Arbitrary Output Quad Clock Generator

CDCS504TPWRQ1

TI

TSSOP-8

5000

Clock Generator Clock buffer/clock m ultiplier 8-TSSOP

CY22393FXCT

Cypress

TSSOP-16

10000

Clock Generator, Fanout Distribution IC 200MHz 1 16-TSSOP (0.173", 4.40mm Width)

ZL30291LDF1

Microchip

UQFN-100

1800

CK440Q Compliant PCIe Gen 6 and Platform Timing Clock Generator

ZL30291LDG1

Microchip

UQFN-100

1800

CK440Q Compliant PCIe Gen 6 and Platform Timing Clock Generator
