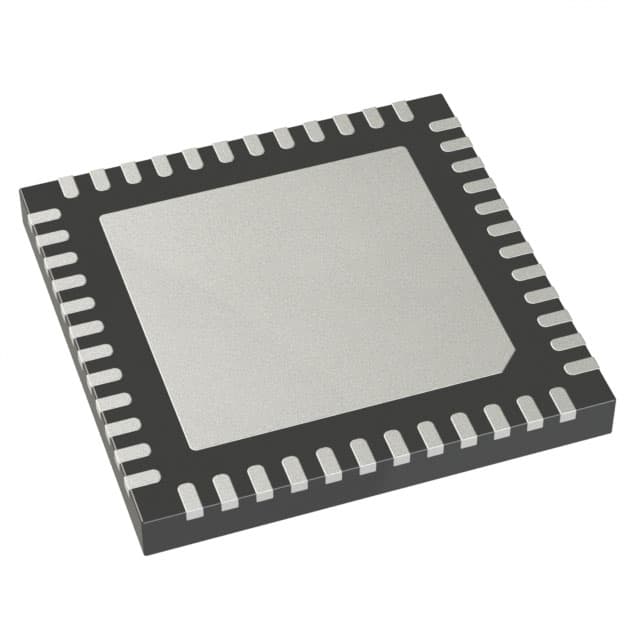

The AD9530BCPZ is a fully integrated PLL and distribution device for 40 Gbps/ 100 Gbps OTN applications, supporting clock zeroing and frequency conversion. The internal PLL can be locked to one of two reference frequencies to generate four discrete output frequencies up to 2.7 GHz.

The AD9530BCPZ integrates an internal 5.11GHz to 5.4GHz, ultra-low noise voltage-controlled oscillator (VCO). All four outputs are separately divided from the internal VCO and use two high-speed VCO dividers (Mx dividers) and four independent 8-bit channel dividers (Dx dividers). The high-speed VCO crossover offers fixed frequency divisions of 2, 2.5, 3, and 3.5, providing a wide range of possible output frequencies. The AD9530BCPZ is configured for a loop bandwidth of less than 15 kHz to attenuate the noise from the reference voltage source.

Application field

The AD9530BCPZ is widely applied in the following fields:

40 Gbps/100 Gbps Optical Transmission Network (OTN) line-end clock

High-speed analog-to-digital converter (ADC) and digital-to-analog converter (DAC) clock

Data communication

Performance parameters

PLL: Yes

Input: Clock

Output: CML

Number of circuits: 1

Ratio - Input: Output: 2:4

Differential - Input: Output: Yes/Yes

Frequency - Maximum: 2.7GHz

Frequency divider/frequency multiplier: Yes/No

Voltage - Power supply: 2.375V to 2.625V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Shell: 48-LFCSP
