Trade Name:Key switch controller
Brand:Maxim
Particular Year:25+

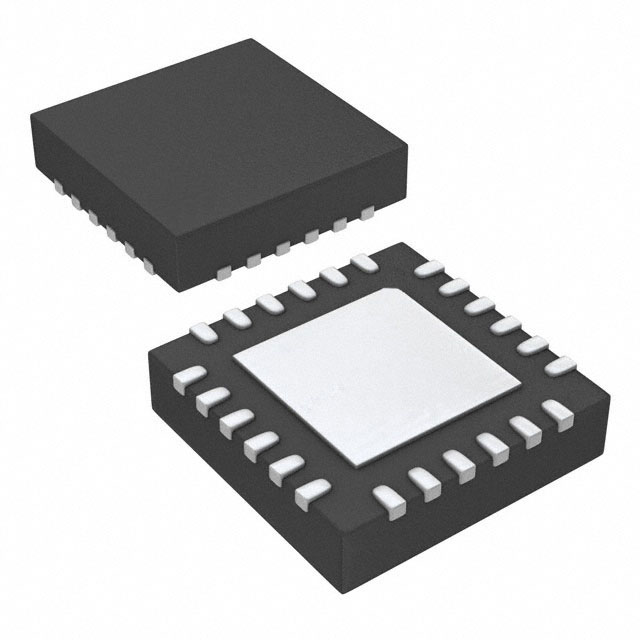

Package:TQFN-24
Delivery Date:New and original
Stock: 2000pcs
The MAX7370ETG is an 8 x 8 keyboard switch controller and LED driver /GPIO with I2C interface and high ESD protection . It adopts a 24-pin TQFN package, with a size of 3.5x3.5mm, and is suitable for mobile phones, PDAs and other portable consumer electronics applications. The MAX7370ETG can manage up to 64 key switches and offers optional LED drivers with GPIO and PWM control.
The main features of MAX7370ETG are as follows:
Monitor up to 64 buttons
Integrated high ESD protection
±8kV IEC 61000-4-2 contact discharge
±15kV IEC 61000-4-2 air gap discharge
The key scanning function uses static matrix monitoring to achieve low EMI operation
Four LED driver pins are provided on COL7 - COL4
The 5V tolerance, open-drain I/O port can drive a constant current LED
256-step PWM independent LED brightness control accuracy
The range of individual LED flicker rate and general LED dimming/fading rate: 256ms to 4096ms
The FIFO queue supports up to 16 debouncing key events
The user can configure the time for pressing and releasing the keys to shake off (2ms to 32ms).
Provide a key switch interrupt (low-level valid INT) at the end of each debouncing event /FIFO level or definable time period.
Working power supply voltage range: 1.62V to 3.6V
GPIO can be programmed separately into two logic levels
8-channel independent programmable level converter
Optional GPIOs are provided on all ROW_ and COL_ pins
Supports hot plugging
A 400kbps, 5.5V tolerance I²C serial interface with optional bus timeout
The MAX7370ETG is suitable for a variety of application scenarios, including:
Cellular phone
Handheld game console
Notebook computer
PDA
Portable consumer electronics
