Service Telephone:86-755-83294757
Trade Name:Key switch controller
Brand:Maxim
Particular Year:25+

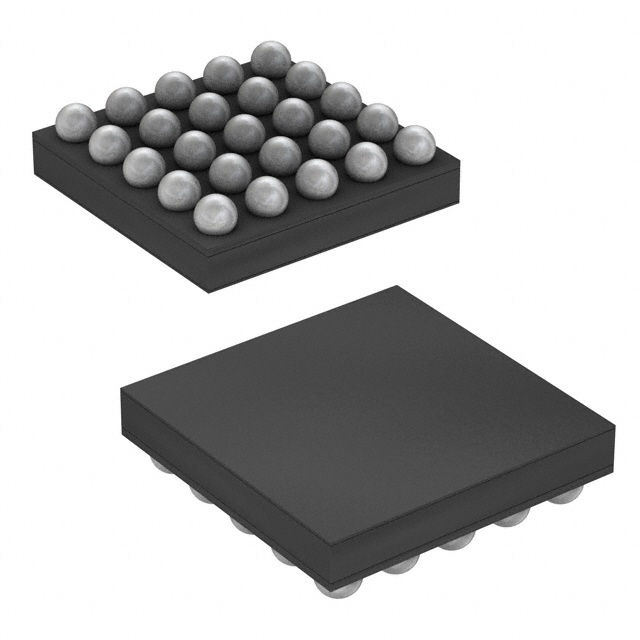

Package:WLP-25
Delivery Date:New and original
Stock: 2000pcs
The MAX7365EWA70 I2C interface peripheral provides up to 56 key switch management for the microprocessor.
Each time a key is pressed or released, a key value is generated, simplifying the design of the multi-key input scheme. Adopt static key input monitoring instead of dynamic scanning mode to ensure low EMI operation. Metal switches or resistive (carbon) switches up to 5kΩ can be adopted.
The MAX7365EWA70 features automatic sleep and wake-up functions, thereby maintaining the lowest device power consumption. After one programmable sleep cycle, the automatic sleep function places the device in A low-power state (typically 1µA). When a key operation event occurs, the automatic wake-up function configuration device returns from the sleep state to the normal working mode.
Its main features include:
Reduce the load on the processor
Up to 56 keys can be monitored
The FIFO can store up to 16 debouncing key events
A hardware interrupt is generated at the end of a FIFO level or a definable time period
Extend battery life
The automatic sleep and wake-up functions minimize power consumption
The dormant current is less than 1µA
Save circuit board space
Small size (2mm × 2mm), 25 solder ball WLP package
Flexible design
Power supply range: 1.62V to 3.6V
Proprietary false key detection and removal technology
Users can configure the key to shake the time from 1ms to 31ms
Adopt a low EMI static matrix monitoring design
Five additional GPIO ports
All key switches can be used as GPI
1Mbps, 2-wire serial port compatible with 5.5V
A two-wire serial bus timeout can be selected
Due to its stable performance and easy-to-implement multi-key input function, the MAX7365EWA70 is widely used in various application scenarios, including:
Cellular phone
Handheld game console
Notebook computer
PDA
Portable consumer electronics
Model
Brand
Package
Quantity
Describe
Maxim
TQFN-24
2000
8 x 8 keyboard switch controller and LED driver /GPIO with I2C interface
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
