Trade Name:IPM Modules
Brand:MITSUBISHI
Particular Year:23+
Package:Module
Delivery Date:New and original
Stock: 1000pcs

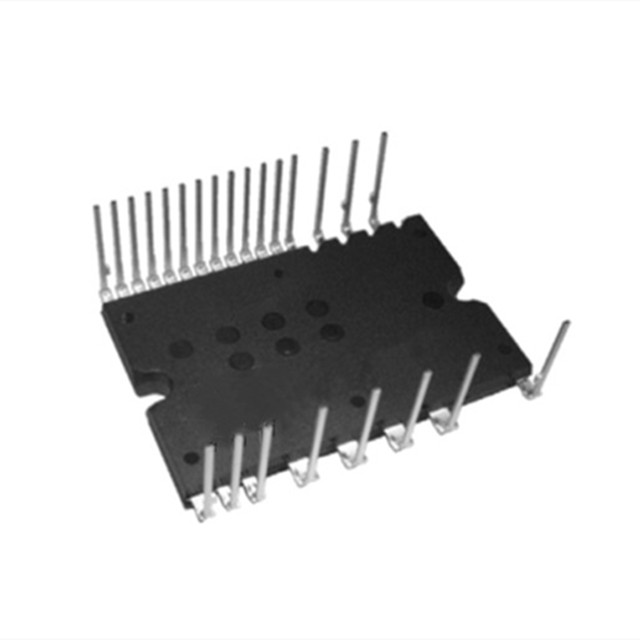

The PSS30S92E6-AG is an ultra-compact DIPIPM intelligent power module, mainly used for driving small-capacity motors in household appliances and motion control, etc. The module has a variety of built-in protection functions, including overcurrent protection, overheat protection and short circuit protection, to ensure that the device can automatically cut off power in abnormal conditions to protect the device from damage .
Key performance
Model: PSS30S92E6-AG
Maximum collector-emitter voltage: 600 V
Continuous collector current (25℃) : 30 A
Insulation withstand voltage: 1500 Vrms
Operating temperature: 150℃
Internal topology: Three-phase frequency conversion, equipped with driver IC
Packaging category: Ultra-small DIPIPM
In addition, the PSS30S92E6-AG module also has the following features:
Optimizing the pin layout makes circuit board design more convenient and helps to reduce the installation area, including the surrounding components.
2. The heat dissipation and insulation transfer of the molded structure are achieved through high thermal conductivity insulating sheets.
3. It is directly controlled by the input signals from the CPU and the microcomputer through the HVIC equipped with the drive circuit, protection circuit and level conversion circuit.
4. Using a single power supply without the use of optocouplers can reduce the size of the circuit board and improve reliability.
5. Built-in BSD can reduce the number of external components.
Model
Brand
Package
Quantity
Describe
MITSUBISHI
Module
1000
Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module
