Trade Name:IPM Modules
Brand:MITSUBISHI
Particular Year:25+
Package:Module
Delivery Date:New and original
Stock: 1000pcs

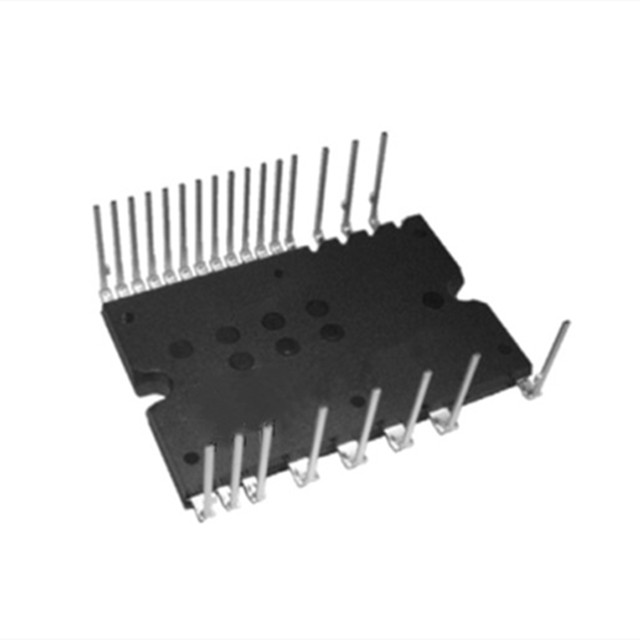

PSS20S93E6-AG is a Transfer molded (IPM) intelligent power module in the Very small DIPIPM Ver.7 series, with a single control power supply and no need for optocouplers, mainly for driving small capacity motors, especially for household appliances and motion control .
Key performance
Model: PSS20S93E6-AG
Maximum collector-emitter voltage: 600 V
Continuous collector current (25℃) : 20 A
Insulation withstand voltage: 1500 Vrms
Operating temperature: 175℃
Internal topology: Three-phase frequency conversion, equipped with driver IC
Packaging category: Ultra-small DIPIPM
In addition, the PSS20S93E6-AG module has the following advantages:
By expanding the operating temperature range, suppressing temperature rise and reducing noise, it is conducive to enhancing the freedom of system design and lowering system costs.
2. Equipped with the low-noise 7th generation CSTBT, which is quieter than the ultra-small Ver.6 series but has the same loss, it can reduce the cost of noise reduction components.
The maximum junction temperature has been raised to 175℃, supporting instantaneous current conduction under conditions such as overload operation.
4. Reduce the thermal resistance between the chip casings and control the temperature rise (for 20A and 30A products).
5. Thicken the terminal socket to enhance the terminal strength and suppress the temperature rise of the terminal.
6. The terminal layout is the same as that of traditional products and is easy to replace.
Model
Brand
Package
Quantity
Describe
MITSUBISHI
Module
1000
Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module
