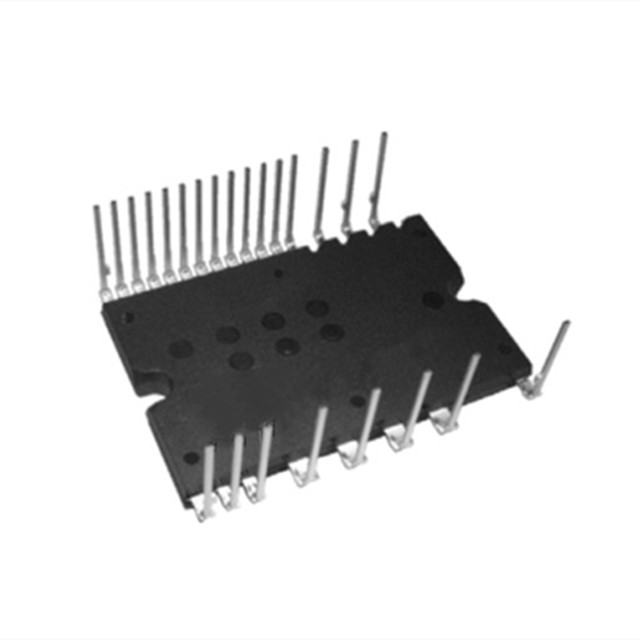

PSS35S92E6-AG is a smart power module (IPM) designed for driving small capacity motors in household appliances and motion control ‌‌. Its main parameters include:

Maximum collector-emitter voltage: 600 V

Continuous collector current (25℃) : 35 A

Power dissipation (Pd) : 66.6W

Insulation withstand voltage: 1500 Vrms

Operating temperature: 150℃

Internal topology: Three-phase frequency conversion, equipped with driver IC

Packaging category: Ultra-small DIPIPM

Switching frequency: 650kHz

Core advantage

Optimizing the pin layout makes circuit board design more convenient and helps to reduce the installation area, including the surrounding components.

The heat dissipation and insulation transfer molding structure is achieved through high thermal conductivity insulating sheets.

It is directly controlled by the input signals from the CPU and the microcomputer through the HVIC equipped with the drive circuit, protection circuit and level conversion circuit.

Using a single power supply without the use of optocouplers can reduce the size of the circuit board and improve reliability.

Built-in BSD can reduce the number of external parts.

In addition, specific application scenarios of the PSS35S92E6-AG module include but are not limited to: household appliances ‌ : such as air conditioners, refrigerators, washing machines, etc.

Youdaoplaceholder0 Motion control ‌ : such as small motor controllers, servo systems, etc.
