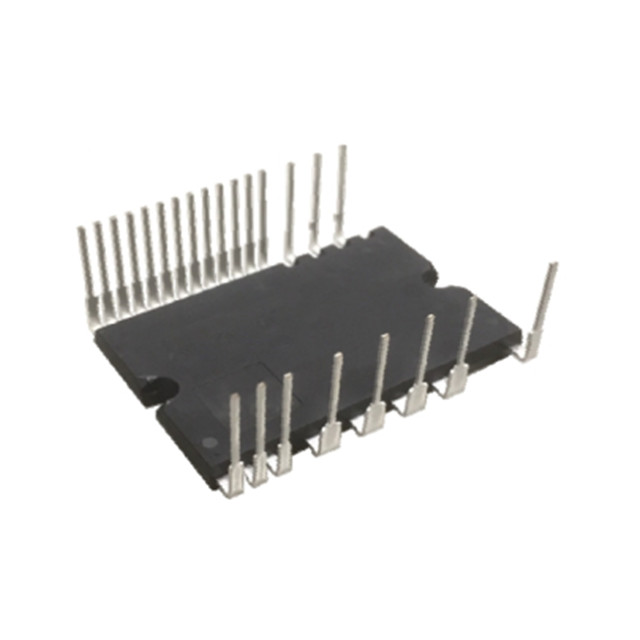

The PSS20S93F6-AG ultra-small DIPIPM is a transfer molded IPM (Intelligent Power Module) with a single control power supply and without the need for an optocoupler. As a de facto standard package, it is used to drive small-capacity motors in household appliances and motion control, etc.

The PSS20S93F6-AG module has the following main features

Optimizing the pin layout makes circuit board design more convenient and helps to reduce the installation area, including the surrounding components.

2. The heat dissipation and insulation transfer of the molded structure are achieved through high thermal conductivity insulating sheets.

3. It is directly controlled by the input signals from the CPU and the microcomputer through the HVIC equipped with the drive circuit, protection circuit and level conversion circuit.

4. Using a single power supply without the use of optocouplers can reduce the size of the circuit board and improve reliability.

5. Built-in BSD can reduce the number of external components.

Key parameters

Model: PSS20S93F6-AG

Voltage: 600 V

Current: 20 A

Insulation withstand voltage: 1500 Vrms

Operating temperature: 175 ℃

Internal topology: Three-phase frequency conversion, equipped with driver IC

Packaging category: Ultra-small DIPIPM
