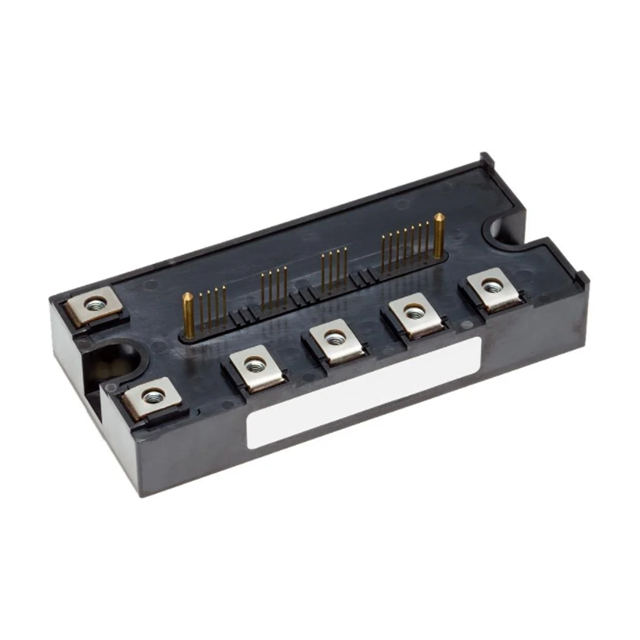

The PM100RG1B065 device is an intelligent power module (IPM), belonging to the IPM G1 series, and is specially designed for medium and high voltage applications such as industrial frequency converters and servo drives. This module has the following key parameters:

Emitter breakdown voltage: 650V

Collector current: 100A

Internal topology structure: 7-unit design (possibly integrating IGBT and drive circuit)

Isolation voltage: 2500Vrms (between the module substrate and the terminal)

Application field

The PM100RG1B065 module is widely used in various scenarios that require efficient power conversion, especially excelling in the following fields:

Frequency converter ‌ : used to control motor speed and torque for efficient energy conversion.

Uninterruptible Power Supply (UPS) ‌ : ensures continuous and stable power supply.

Ac motor control ‌ : Precisely control motor start and run, improve system efficiency. Youdaoplaceholder0 Traction drive ‌ : Enabling smooth acceleration and deceleration in rail transit and electric vehicles.
