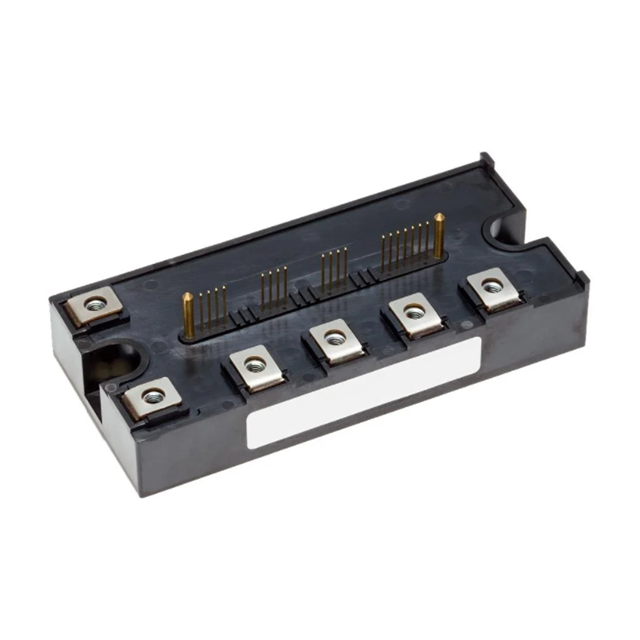

The PM100RG1B120 is an intelligent power module (IPM), belonging to the IPM G1 series, suitable for medium and high voltage industrial applications. Its main parameters include:

Emitter breakdown voltage: 1200V

Collector current: 100A

Internal topology structure: 7-unit design (possibly including the integration of IGBT and drive circuit)

Isolation voltage: 2500Vrms (between the module substrate and the terminal)

Technical characteristics

Equipped with the 7th generation IGBT adopting the CSTBT™※1 structure and diodes adopting the RFC※2 structure, it reduces power loss and is conducive to lowering the power consumption of the inverter equipment.

2. By adopting the same new structure (resin-insulated copper substrate) as the 7th generation IGBT module and reducing the welding parts, the thermal cycle life is prolonged, which helps to enhance the reliability of the inverter equipment.

In addition to the built-in functions of traditional products ※3, it is also equipped with a switch speed switching drive and error recognition function, which helps to reduce the power consumption of the inverter equipment and shorten the design time.

Application field

The PM100RG1B120 module is suitable for application scenarios that require high voltage and high current, and can operate stably within a wide temperature range.
