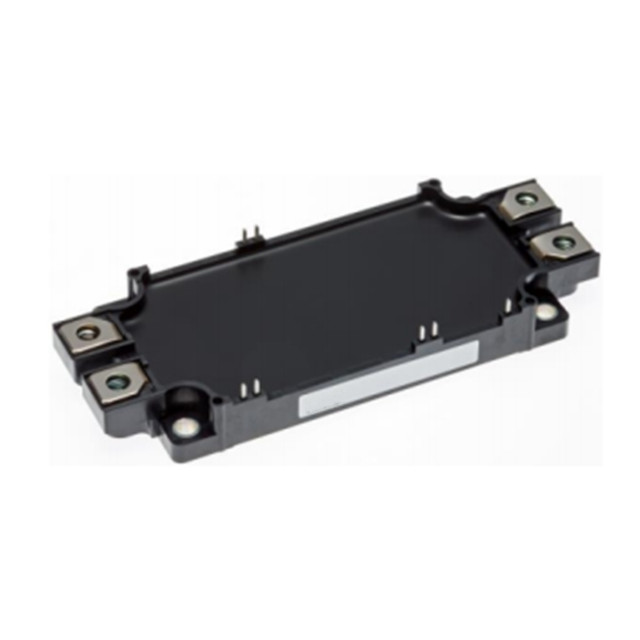

The CM600DX-13T is a high-voltage IGBT module, belonging to the Dual/ dual-unit package T series. The chip structure of this product has developed from planar gate structure to trench gate structure, and with CSTBT, it meets the requirements of low loss and miniaturization of industrial equipment. Compared with the traditional S series (sixth-generation IGBT), the T/T1 series has lower power loss and smaller size. In addition, the NX type and LV100 type have been added on the basis of the standard (std) type of the traditional shape.

The key parameters of CM600DX-13T are as follows:

Collector-emitter voltage: 600V

Collector current: 600A (@25°C)

Saturation voltage drop: approximately 2.5V (typical value)

Maximum junction temperature: 175°C

Isolation voltage: 2500Vrms

Protection function: May integrate a temperature monitoring interface (such as an NTC thermistor)

Application field

The CM600DX-13T module is widely used in the following fields:

Ac motor control ‌ : For efficient operation and control of industrial motors.

Motion/Servo control ‌ : Provides stable power output in precision motion control systems.

Power supply ‌ : High reliability power conversion for a variety of power equipment ‌.
