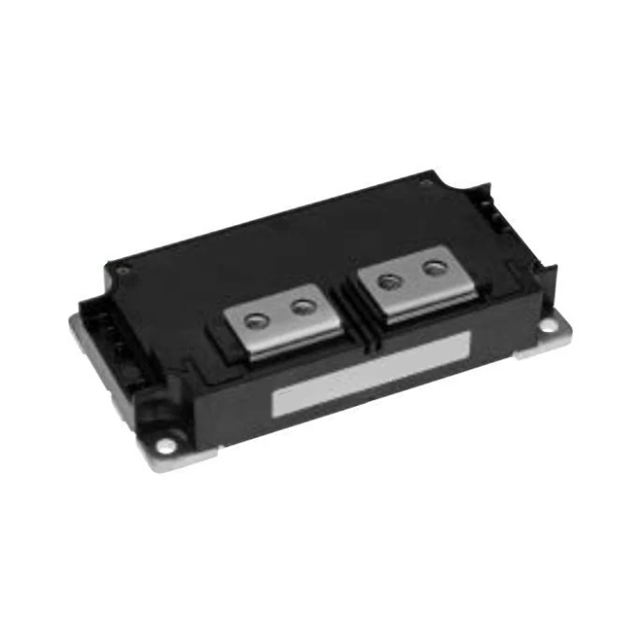

CM500C2Y-24S - IGBT module STD type S series three-level 1.2kV 500A power module

1. Overview

The CM500C2Y-24S is a member of Mitsubishi's IGBT module STD type. It is equipped with the 7th generation IGBT adopting the CSTBT™※1 structure and diodes adopting the RFC※2 structure, reducing power loss and facilitating the reduction of power consumption in industrial equipment. In addition, reducing the welding parts through the new structure and extending the thermal cycle life is conducive to improving the reliability of industrial equipment.

2. Basic information

Voltage: 1200V

Current: 500A

Internal topology: Three levels

Isolation voltage: 4000Vrms

3. Application scenarios

The CM500C2Y-24S module has extensive applications in electronic devices, especially in power conversion and control systems that require high reliability and high performance. Its compact size and wide operating temperature range make it suitable for a wide range of compact and demanding applications ‌.
