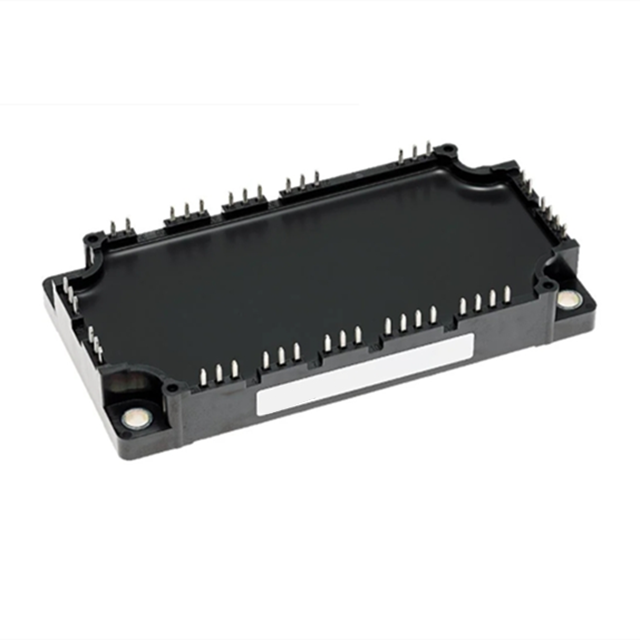

The CM75MXUC-24T high performance industrial IGBT module ‌ is equipped with a three-phase converter, inverter and braking circuit (CIB), simplifies inverter system design, and reduces the size by 36% compared with existing modules ‌. Furthermore, the product structure of CM75MXUC-24T has evolved from the planar grid structure to the grooved grid structure. Moreover, with CSTBT, it meets the requirements of low loss and miniaturization of industrial equipment.

Basic parameters

Model: CM75MXUC-24T

Voltage: 1200V

Current: 75A

Internal topology: CIB

Isolation voltage: 2500Vrms

Key features

The product lineup has added products with built-in three-phase converters, inverters and braking circuits (CIB), which helps simplify the design of industrial equipment.

The external dimensions are reduced by approximately 36% compared to traditional products, which is conducive to the miniaturization of industrial equipment (CIB).

Equipped with the 7th generation IGBT adopting the CSTBT™※1 structure and diodes adopting the RFC※2 structure, it reduces power loss and is conducive to lowering the power consumption of industrial equipment.

Reducing the welded parts through the new structure and extending the thermal cycle life are conducive to improving the reliability of industrial equipment.

The use of crimp terminals and PC-TIM※3 simplifies the assembly process of industrial equipment.

Application field

The CM75MXUC-24T module is widely used in various high-power switching applications, including:

Motion control

Renewable energy

Power supply and uninterruptible power supply (UPS) devices
