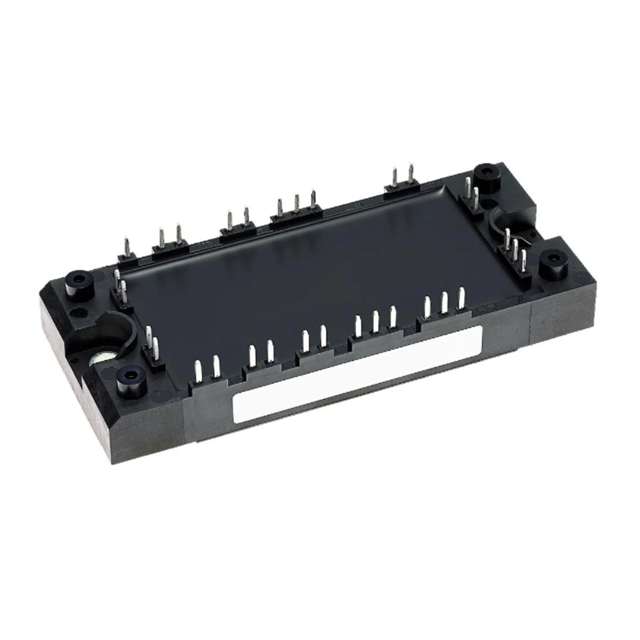

The CM75MXUB-24T is a high-performance industrial IGBT module ‌ with three-phase converter, inverter and braking circuit (CIB), which simplifies inverter system design and reduces packet size by 36%‌ compared with existing modules. Furthermore, the product structure of CM75MXUB-24T has evolved from a planar grid structure to a grooved grid structure. Moreover, with CSTBT, it meets the requirements of low loss and miniaturization of industrial equipment.

Basic parameters

Model: CM75MXUB-24T

Voltage: 1200V

Current: 75A

Internal topology: CIB

Isolation voltage: 2500Vrms

Main features

The product lineup has added products with built-in three-phase converters, inverters and braking circuits (CIB), which helps simplify the design of industrial equipment.

The external dimensions are reduced by approximately 36% compared to traditional products, which is conducive to the miniaturization of industrial equipment (CIB).

Equipped with the 7th generation IGBT adopting the CSTBT™※1 structure and diodes adopting the RFC※2 structure, it reduces power loss and is conducive to lowering the power consumption of industrial equipment.

Reducing the welded parts through the new structure and extending the thermal cycle life are conducive to improving the reliability of industrial equipment.

The use of crimp terminals and PC-TIM※3 simplifies the assembly process of industrial equipment.

Application scenarios

The CM75MXUB-24T module is suitable for semiconductor power systems that require efficient energy conversion and control, such as frequency converters, inverters and other equipment ‌.
