The TM4C1292NCPDTI3 microcontroller belongs to the Tiva™ C series. It integrates a variety of rich communication functions to achieve a new high-connection design, enabling critical real-time control between performance and power consumption. The TM4C1292NCPDTI3 features integrated communication peripherals and other high-performance analog and digital functions, providing a solid foundation for a wide range of target applications, covering multiple fields from human-machine interfaces to network system management controllers.

Basic parameters

The TM4C1292NCPDTI3 has the following main parameters:

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, QSSI, UART/USART, USB OTG

Peripherals: Under-voltage detection/reset, DMA, motion control PWM, POR, PWM, WDT

I/O number: 90

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 6K x 8

RAM size: 256K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.97V - 3.63V

Data converter: A/D 20x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

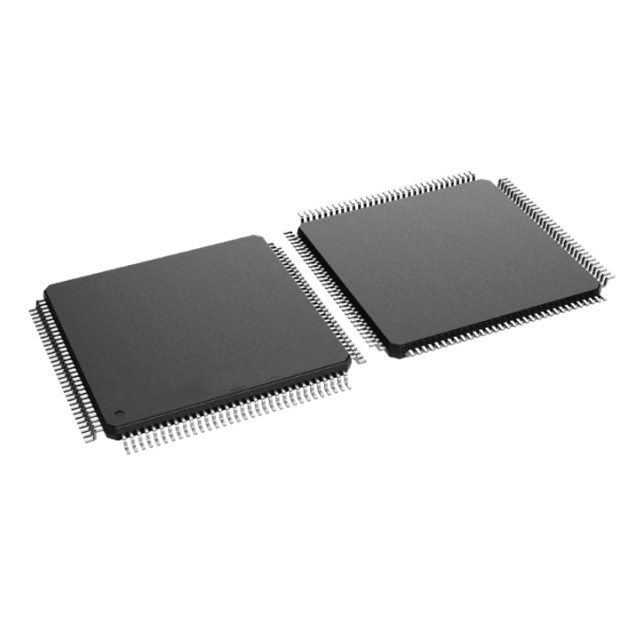

Device packaging: 128-TQFP (14x14)

Application field

The TM4C1292NCPDTI3 microcontroller is suitable for a variety of applications, including but not limited to: Industrial control ‌ : Suitable for complex industrial control systems due to its powerful processing capabilities and support for multiple interfaces.

Embedded systems ‌ : Widely used in embedded systems that require high reliability and high performance.

Consumer electronics ‌ : Also widely used in smart homes, portable devices and other consumer electronics.
