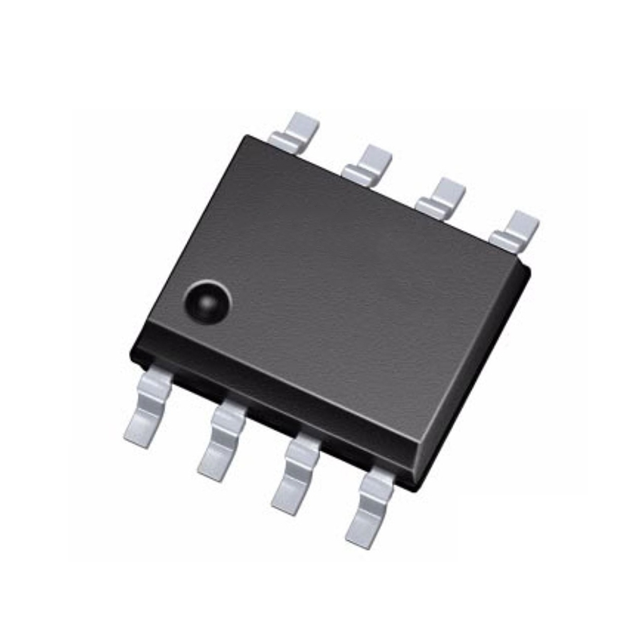

The TLE4998S8D is a linear Hall sensor designed for high-precision Angle and position detection ‌. The sensor provides a digital SENT signal based on the SAE J2716 standard. The signal consists of a series of pulses, each transmitting containing multiple data half-bytes, which include the sensor Hall value, temperature and status information ‌.

Characteristics

The main features of TLE4998S8D include:

Integrate two independent linear Hall sensor ics and a single-side half-byte transmission (SENT) drain with an open circuit

Output signal (SAE J2716)

20-bit digital signal processing (DSP

Digital temperature and stress compensation

16-bit overall resolution

The operating temperature range of the vehicle is -40°C to 125°C

The output signal drifts extremely little throughout the entire temperature range and throughout its service life

Programmable parameters are stored in EEPROM and have unit error correction function:

SENT Unit time

Magnetic range, sensitivity (gain), compensation and output slope polarity

Filtering bandwidth

Clamping level

The customized temperature compensation coefficient is applicable to all common magnets

Reprogrammable before memory locking

Power supply voltage: 4.5-5.5V (Extended range: 4.1- 16V)

Configurable magnetic range: ±50 mT, ±100 mT, or ±200 mT

All pins have reverse polarity and overvoltage protection functions

Output short-circuit protection

On-board diagnosis (overvoltage, EEPROM error)

Internal magnetic field value and temperature output

Programming and Operation of multi-sensors for General Power Supply

Two-point calibration of the magnetic transfer function without iterative steps

Application field

The TLE4998S8D sensor is suitable for various application scenarios that require high-precision Angle and position detection, especially in the automotive and industrial fields. Specific applications include:

Potentiometer replacement is stable: no mechanical wear, resistant to moisture, temperature, pollution and vibration.

Linear and angular position sensing in automotive and industrial applications has the highest precision requirements.

Suitable for safety applications, such as pedal position, throttle position and steering torque sensing.
