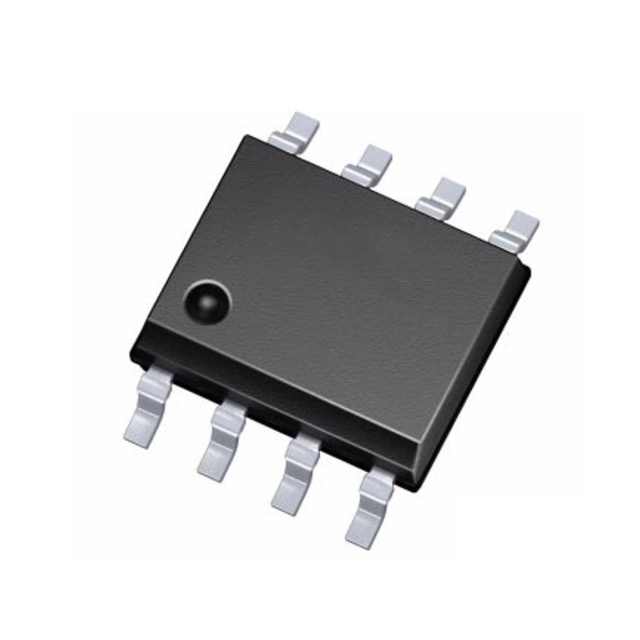

The TLE4998P8D linear Hall effect sensor is specially designed to meet the requirements of high-precision Angle and position detection. This sensor provides a digital PWM signal and is suitable for direct decoding of the rectangular signal duty cycle measurement unit (typically the timer/capture unit in a microcontroller).

Main characteristics

The features of TLE4998P8D include:

Integrate two independent programmable linear Hall sensor ics with the PWM open-drain output signal.

20-bit digital signal processing

Digital temperature and stress compensation

12-bit overall resolution

The operating temperature range of the vehicle is -40°C to 125°C

The output signal drifts extremely little throughout the entire temperature range and throughout its service life

Programmable parameters are stored in EEPROM and have unit error correction function:

PWM output frequency

Magnetic range, sensitivity (gain), compensation and output slope polarity

Bandwidth

Clamping level

The customized temperature compensation coefficient is applicable to all common magnets

Reprogrammable before memory locking

Power supply voltage: 4.5- 5.5V (Extended range: 4.1- 16V)

Configurable magnetic range: ±50 mT, ±100 mT, or ±200 mT

All pins have reverse polarity and overvoltage protection functions

Output short-circuit protection

On-board diagnosis (overvoltage, EEPROM error)

Digital readings of the magnetic field and internal temperature in the calibration mode

Programming and Operation of multi-sensors for General Power Supply

Two-point calibration of the magnetic transfer function without iterative steps

Application field

The TLE4998P8D sensor is suitable for a variety of high-precision requirements applications, including:

Potentiometer replacement is stable: no mechanical wear, resistant to moisture, temperature, pollution and vibration.

Linear and angular position sensing in automotive and industrial applications has the highest precision requirements.

Suitable for safety applications, such as pedal position, throttle position and steering torque sensing.
