The TMS5702135DPGEQQ1 device integrates an ARM Cortex-R4F floating-point CPU that delivers a high efficiency of 1.66 DMIPS/MHz and has configurations that can run at up to 180 MHz to deliver up to 298 DMIPS. The device supports the word-invariant large end-sequence [BE32] format.

The TMS5702135DPGEQQ1 device has up to 3MB of integrated Flash memory and up to 256KB of data RAM that supports single-bit error correction and double-bit error detection. The Flash memory on this device is a non-volatile, electrically erasable, programmable memory implemented by a 64-bit wide data bus interface. For all read, program, and erase operations, the flash memory runs on a 3.3V power input (same level as the I/O power supply). When in pipeline mode, the Flash can run at a system clock frequency of up to 180MHz. The SRAM supports single-cycle read and write accesses in byte, half-word, word, and double-word modes.

The TMS5702135DPGEQQ1 device features peripherals for real-time control-based applications, including two Next Generation High-End Timer (N2HET) timing coprocessors and two 12-bit analogue-to-digital converters (ADCs) supporting up to 24 inputs.

Device Attributes:

Core Processor: ARM® Cortex®-R4F

Core specification: 16/32-bit

Speed: 160MHz

Connectivity: CANbus, EBI/EMI, FlexRay, I²C, LINbus, MibSPI, SCI, SPI, ART/USART

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 58

Program memory capacity: 2MB (2M x 8)

Programme memory type: Flash

EEPROM Size: 64K x 8

RAM Size: 256K x 8

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V

Data Converter: A/D 24x12b

Oscillator Type: External

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

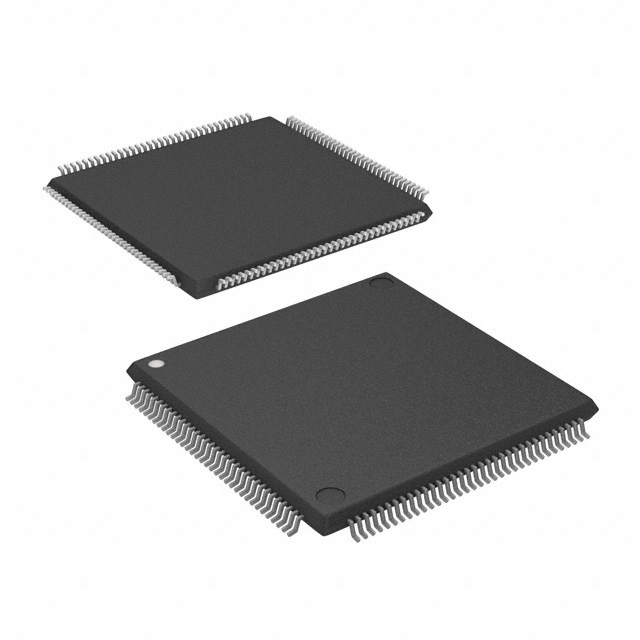

Package/Case: 144-LQFP

Supplier Device Package: 144-LQFP (20x20)

Application Areas

- Braking systems (anti-lock braking systems and electronic stability control)

- Electric power steering

- Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) Reverser Systems

- Battery management systems

- Active driver assistance systems

- Space and Avionics

- Railway

- Off-road vehicles
