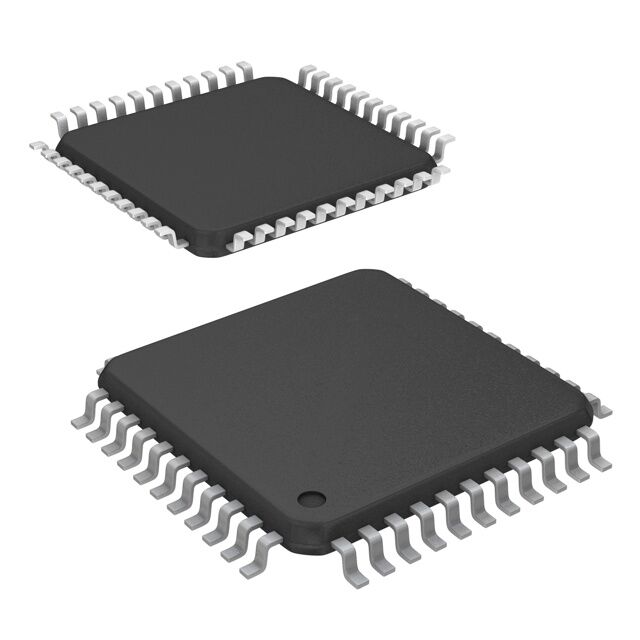

CY8C4125AI-S433 is a 32-bit ARM Cortex-M0+microcontroller belonging to PSoC ®  The 4 CY8C4100S series adopts a 44-TQFP package, with 32KB Flash storage and 4KB SRAM, suitable for low-power, high integration embedded applications such as smart homes, industrial controls, consumer electronics, and Internet of Things (IoT) devices.

CY8C4125AI-S433 Product Features

High performance ARM Cortex-M0+core

Main frequency 24MHz, supports single cycle multiplication, optimizes computational efficiency.

32KB Flash storage (supports code storage)+4KB SRAM (data cache).

Enrich peripheral interfaces

Communication interfaces: I ² C, SPI, UART/USART, LINbus, IrDA, smart card interface.

Analog peripherals:

16x10b ADC (ramp type)+16x12b SAR ADC (high-precision sampling).

2xIDAC (current output DAC), suitable for sensor driving.

PWM, LCD driver, CapSense capacitor sensing ®）， Support touch button design.

Wide voltage operating range

1.71V ~ 5.5V， Compatible with 3.3V/5V systems, suitable for battery powered devices.

Industrial grade reliability

Working temperature: -40 ° C~+85 ° C, suitable for harsh environments.

Undervoltage detection (LVD), power on reset (POR), watchdog timer (WDT), enhance system stability.

CY8C4125AI-S433 Product Attributes

Product type: ARM microcontroller - MCU

Series: PSoC4100

Installation style: SMD/SMT

Packaging/Box: TQFP-44

Core: ARM Cortex M0+

Program memory size: 32 kB

Data bus width: 32 bits

ADC resolution: 10 bit, 12 bit

Maximum clock frequency: 24 MHz

Number of input/output terminals: 36 I/O

Data RAM size: 4 kB

Power Supply Voltage - Minimum: 1.71 V

Power Supply Voltage - Maximum: 5.5 V

Minimum operating temperature: -40 ° C

Maximum operating temperature:+85 ° C

Data Ram type: SRAM

Data ROM size: 8 kB

Data Rom type: ROM

Interface types: I2C, SPI, UART

Humidity sensitivity: Yes

Number of timers/counters: 5 Timer

Processor series: PSoC 4100S
