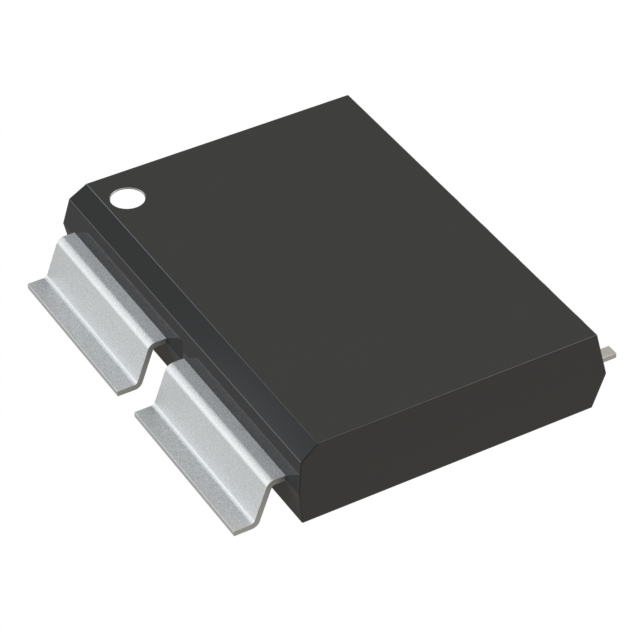

The TMCS1123C3AQDVGRQ1 is an electrically isolated Hall effect current sensor with outstanding isolation performance and accuracy in the industry. This sensor is designed to meet the high-precision current measurement requirements in high-voltage systems such as electric vehicle (EV) charging and solar energy.

Its main features include:

High sustained current capacity ‌ : 80A RMS

Enhanced Isolation ‌ : Working isolation voltage of 600Vrms

Sensitivity option ‌ : 25mV/A to 150mV/A

Power supply voltage range ‌ : 3V to 5.5V

Response time ‌ : 1µs

Propagation delay ‌ : 110ns

Overcurrent detection response time ‌ : 100ns

High immunity to external magnetic fields ‌

Precision zero current reference output ‌

Safety-related certification programs ‌ : UL 1577 Component Certification program, IEC/CB 62368-1‌

Application field

TMCS1123C3AQDVGRQ1 is widely applied in the following fields:

• Vehicle-mounted charger

• DC/DC converter

• Rotor excitation

• HVAC compressor

• High-voltage PDU

• Electric vehicle charging
