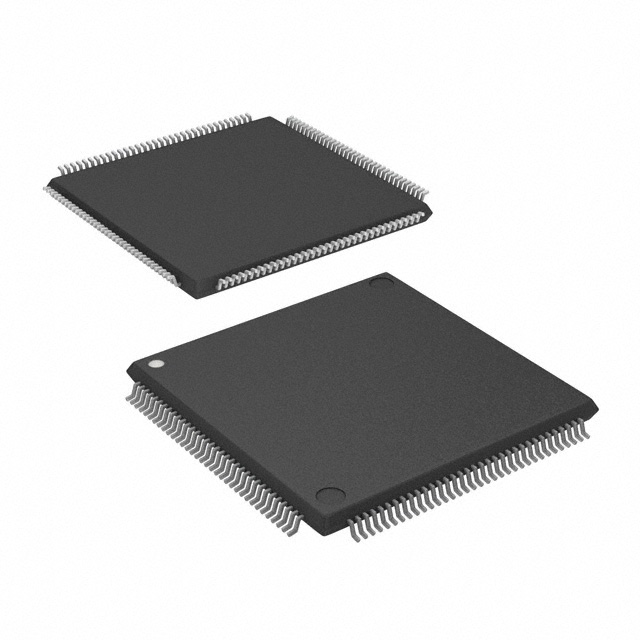

The LPC2378FBD144K microcontroller (MCU) supports 10/100 Ethernet, full-speed (12Mbps) USB 2.0, and CAN 2.0B. It features up to 512KB of ISP/IAP flash memory, up to 58KB of SRAM, 10-bit A/D and D/A converters, an IRC oscillator, and an option for interfacing to SD memory cards. The MCU has two AHB buses, so high-bandwidth peripherals such as Ethernet and USB can run simultaneously without affecting the host application. Applications include industrial control, POS systems, protocol conversion, building automation and security systems.

Product Attributes

Core Processor: ARM7®

Core specification: 16/32-bit

Speed: 72MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SP, ART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, WDT

Number of I/O: 104

Program memory capacity: 512KB (512K x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 58K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 8x10b SAR; D/A 1x10b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 144-LQFP

Supplier Device Package: 144-LQFP (20x20)

Applications

• Industrial Controls

• Medical Systems

• Protocol Converters

• Communication
