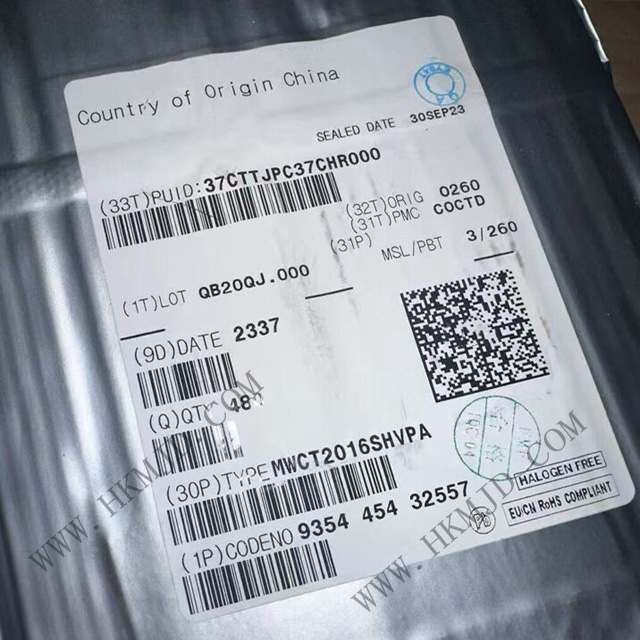

For picture reference, please see the specifications
< >

Commodity Model:MWCT2016SHVPA

Trade Name:Wireless Charging IC

Brand:NXP

Particular Year:23+

Package:HDQFP100

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MWCT2016SHVPA
Package
HDQFP100
Describe
Wireless charging IC MWCT2016S, MaxQFP100

Product Description

MWCT2016SHVPA is a high-performance wireless charging transmitter IC designed specifically for automotive and industrial applications. It complies with the latest WPC Qi Power Class 0 specification, enabling efficient and safe wireless charging functionality.


MWCT2016SHVPA Technical Specifications

Compliance: Complies with WPC Qi Power Class 0 specification

Input Voltage Range: Supports a wide input voltage range from 5V to 48V

Operating Frequency: 85kHz

Maximum Output Power: 6.6kW

Transmission Efficiency: Up to 92%

Operating Temperature Range: -40°C to 85°C

Protection Features: Includes overvoltage, overcurrent, and overtemperature protection

Package Type: 100-QFP (MaxQFP100)


MWCT2016SHVPA Product Features

Multi-coil support: Supports multiple coils, enabling simultaneous charging of multiple devices

Low standby power consumption: System supports ultra-low standby power consumption mode

Security features: Built-in HSE security engine, supporting AES-128/192/256, RSA, ECC, and other encryption algorithms

Foreign object detection: Advanced Q-factor and power loss FOD methods

Temperature sensing: Built-in temperature sensing functionality

Rich interfaces: Supports CAN FD, I²C, SCI, SPI, and other interfaces

Firmware updates: Supports secure firmware updates in the field


Application scenarios

The MWCT2016SHVPA is widely used in automotive wireless charging systems, providing efficient and safe wireless charging solutions for vehicles. It is also suitable for wireless charging needs in industrial equipment.

Associated Products

Model

Brand

Package

Quantity

Describe

MWCT2015SHVPA

NXP

HDQFP100

2000

MWCT2015S microcontroller for wireless charging transmitter IC

MWCT2014SHVPA

NXP

HDQFP100

2000

MWCT2014S microcontroller for wireless charging transmitter IC

MWCT22C3AVLH

NXP

LQFP-64

1000

15 Watt Wireless Charging Transmitter ICs for Automotive Applications

P9222-RAZGI8

Renesas

WLCSP-40

2000

Wireless Power Receiver for Low Power Applications

STWLC86JR

ST

72-WLCSP

1222

Wireless Power Receiver PMIC 72-WLCSP (3.27x3.67)

PCA9431HKZ

NXP

16-XQFN

1000

NFC Wireless Charging Power Receiver IC 16-XQFN (2.2x2.8)

STWLC99JR

ST

121-WLCSP

1000

Wireless Power Receiver PMIC 121-WLCSP (4.86x4.86)

MWCT1011A3VLH

NXP

LQFP-64

1000

Wireless Charging IC 32-bit, 64k Flash, IFR pgm

STWLC98JR

ST

90-BGA

1000

Wireless Power Receiver PMIC 90-FCBGA (4.3x3.9)

MWCT2013AVLH

NXP

LQFP64

320

15 W Wireless Charging Transmitter ICs for Automotive Applications
