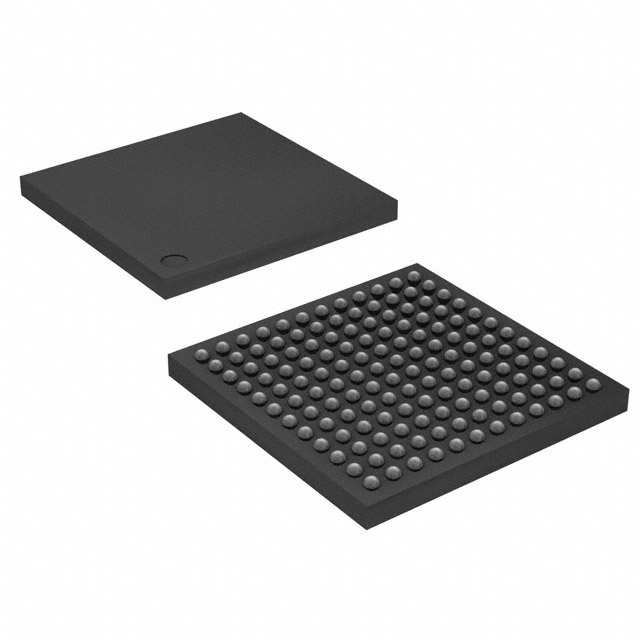

MK61FN1M0VMD12: 120MHz, 32-bit ARM® Cortex®-M4 Kinetis K61 microcontroller IC, LBGA-144

Model: MK61FN1M0VMD12

Package: LBGA-144

Type: 32-bit microcontroller - MCU

MK61FN1M0VMD12 Product Attributes:

Series: Kinetis K61

Core Processor: ARM® Cortex®-M4

Core Specifications: 32-bit

Speed: 120MHz

I/O Count: 95

Program Memory Capacity: 1MB (1M x 8)

Program Memory Type: Flash

RAM Size: 128K x 8

Voltage - Power Supply (Vcc/Vdd): 1.71V to 3.6V

Data Converter: A/D 53x16b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C to 105°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 144-MAPBGA (13x13)

Package/Case: 144-LBGA

MK61FN1M0VMD12 Product Features:

Ultra-low power consumption

10 low-power modes with power and clock gating to optimise peripheral activity and recovery time. Operating power consumption reduced to 350 µA/MHz, static power consumption reduced to 5.6 µA, with full state retention and wake-up in 6 µS. Static power consumption as low as 280 nA.

Full memory and analogue operations are maintained even at a reduced operating voltage of 1.71 V, extending battery life

Low-leakage wake-up unit with up to 8 built-in modules and 16 pins, serving as a wake-up source for Low Leakage Stop (LLS) mode/Very Low Leakage Stop (VLLS) mode

Low-power timer enables the system to continue operating in low-power mode.

Flash memory, SRAM, and FlexMemory

512 KB to 1 MB flash memory. Supports fast access with high reliability and provides 4 levels of security protection.

128 KB SRAM.

FlexMemory: 32 bytes to 16 KB of user-segmentable byte-write/erase EEPROM, suitable for data tables/system data. EEPROM capable of over 10 million erase/write cycles and flash memory with a write time of just 70 µs (no data loss or damage occurs during power failures). Programming and erase functions can be completed without user or system intervention, and the device remains fully functional even when the operating voltage drops to 1.71V. Additionally, 512 KB of FlexNVM is used for extra program code, data, or EEPROM backup.
