The MIMXRT1062CVL5B is based on the Arm® Cortex®-M7 MPCore™ platform and operates at up to 600MHz, providing high CPU performance and excellent real-time response.The MIMXRT1062CVL5B is part of the NXP EdgeVerse™ edge computing platform.The MIMXRT1062CVL5B features 1MB of on-chip RAM. 512KB can be flexibly configured as TCM or general-purpose on-chip RAM, while the other 512KB is general-purpose on-chip RAM.The MIMXRT1062CVL5B integrates an advanced power management module with DC-DC and LDO devices that reduces the complexity of the external power supply and simplifies power supply timing.

The MIMXRT1062CVL5B features a variety of memory interfaces including SDRAM, RAW NAND Flash, NOR Flash, SD/eMMC, Quad SPI, and a variety of other interfaces for connecting peripherals such as WLAN, Bluetooth, GPS, displays, and camera sensors. i.MX RT1060 offers a rich set of audio and video features including LCD display, basic 2D graphics, camera interface, SPDIF and I2S audio interfaces, and also features analogue interfaces such as ADC, ACMP and TSC.

Product Attributes

Core Processor: ARM® Cortex®-M7

Core specification: 32-bit single core

Speed: 528MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG

Peripherals: Undervoltage Detect/Reset, DMA, LCD, POR, PWM, WDT

Number of I/O: 127

Programme memory capacity: -

Programme memory type: External programme memory

EEPROM Capacity: -

RAM Size: 1M x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 20x12b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 105°C (TJ)

Mounting Type: Surface Mount

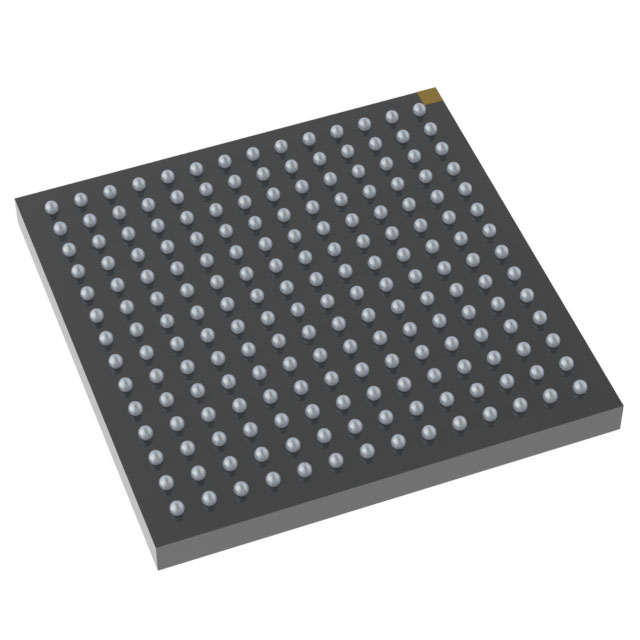

Package/Housing: 196-LFBGA

Supplier Device Package: 196-MAPBGA (10x10)

Applications

• Voice and Audio

• Industrial Computing

• Smart home and building automation

• Motor control and power conversion
