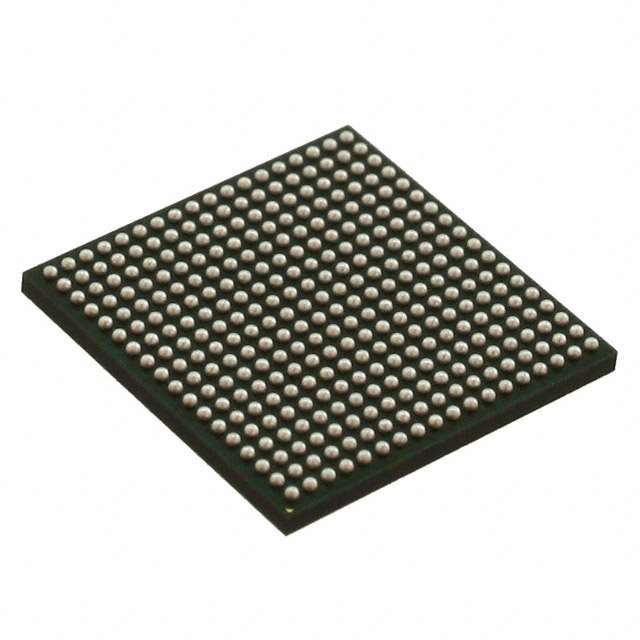

The AMIC110BZCZA microprocessor is the ideal companion communication chip for the C2000 series of microcontrollers connected

to the drive.The PRU-ICSS is separate from the ARM core, allowing independent operation and clocking for increased efficiency and

flexibility.The PRU-ICSS supports additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET IRT,EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos III, and more.

The AMIC110BZCZA is based on the ARM Cortex-A8 processor, peripherals and industrial interface options.

The device supports the High-Level Operating System (HLOS).In addition, the programmable nature of the PRU-ICSS, along with access to pins, events, and all System-on-Chip (SoC) resources, provides the opportunity to implement fast, real-time responses, specialised data processing operations, custom peripheral data processing operations, custom peripheral interfaces, and offloading of tasks from other processor cores in the SoC.

Product Attributes

Core processor: ARM® Cortex®-A8

Number of Cores/Bus Width: 1 core, 32-bit

Speed: 300MHz

Co-processor/DSP: Multimedia; NEON™ SIMD

RAM Controller: LPDDR, DDR2, DDR3, DDR3L

Graphics Acceleration: None

Display and Interface Controller: -

Ethernet: -

SATA: -

USB: USB 2.0 + PHY (2)

Voltage - I/O: 1.8V, 3.3V

Operating Temperature: -40°C ~ 105°C (TJ)

Safety Features: -

Mounting Type: Surface Mount

Package/Housing: 324-LFBGA

Supplier Device Package;324-NFBGA (15x15)

Additional Interfaces:CAN, I²C, McASP, McSPI, MMC/SD/SDIO, UART

Applications

• Industrial communication

• Connecting industrial drives

• Backplane inputs/outputs
