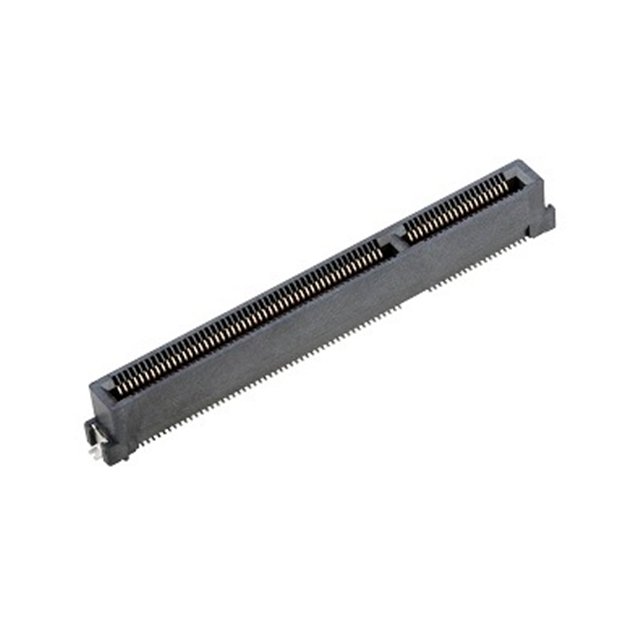

SE1812023111111 -- The 120-position Slim Cool Edge 0.65mm connector is manufactured by Amphenol‌ for high speed and high power card edge packaging applications. ‌ This series of connectors provides a versatile and cost-effective high-density solution.

Features and advantages

The spacing between pins is 1.30mm, and the rated current of each pin is 3A

Suitable for low power board to board applications

The signal pin spacing is 0.65mm, and the rated current of each pin is 0.5A

Supports most board end connection applications

The number of power pins is 4 to 12,

The number of signal pins ranges from 20 to 280

Support flexible power-signal combination

Offset pin with surface mount termination

Higher signal integrity

Open pin area design

Supports both single-ended and differential pair signals at speeds up to 32Gb/s (or 56Gb/s PAM4)

Available in vertical, right-angle, and splint configurations for coplanar, parallel card, and mid-plate applications

Supports a variety of applications such as ICT and consumer products

A 1.6mm thick connector is supported

Suitable for most standard board-to-board applications

Different plate lock options are available

Flexible PCB compaction options available

Provides AIC locking function

Secure locked AIC or cable plug

Application field

Server and storage system ‌ : Used for high-performance computing and data storage devices.

High-end computing system ‌ : Meets complex computing requirements.

Communication equipment ‌ : such as baseband and radio units.
