Trade Name:Card Edge Connectors
Brand:Samtec
Particular Year:25+
Package:80POS
Delivery Date:New and Original
Stock: 2000pcs
The HSEC8-140-01-L-RA-TR is a right angle 0.80 mm pitch edge card connector. Featuring Samtec's Edge Rate® contact system, this series is designed for the following applications.The HSEC8-140-01-L-RA-TR can be used with 1.60mm (0.062") cards and is also compatible with the ECDP cable system for wire-to-board applications.
HSEC8-140-01-L-RA-TR - 80 pos Female Connector Unspecified - Double Edge Gold Plated 0.031’ (0.80mm) Black
Product Attributes
Series: Edge Rate™ HSEC8
Card Type: Unspecified - Dual
Male Female: Female
Number of Positions/Grids/Rows: 40
Number of Positions: 80
Card Thickness: 0.062’ (1.57mm)
Number of Rows: 2
Pitch: 0.031’ (0.80mm)
Readout: Dual
Mounting Type: Surface Mount, Right Angle
End Connections: Solder
Contact Material: Copper Beryllium
Contact Finish: Gold Plated
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Type: Cantilever
Colour: Black
Operating Temperature: -55°C ~ 125°C
Material - Insulation: Liquid Crystal Polymer (LCP)
Model
Brand
Package
Quantity
Describe
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Samtec is an American global manufacturer of electronic connectors. Founded in 1976 and headquartered in the United States, it is committed to providing a wide variety of high-speed, height and micro connector solutions. It is a private company that h…

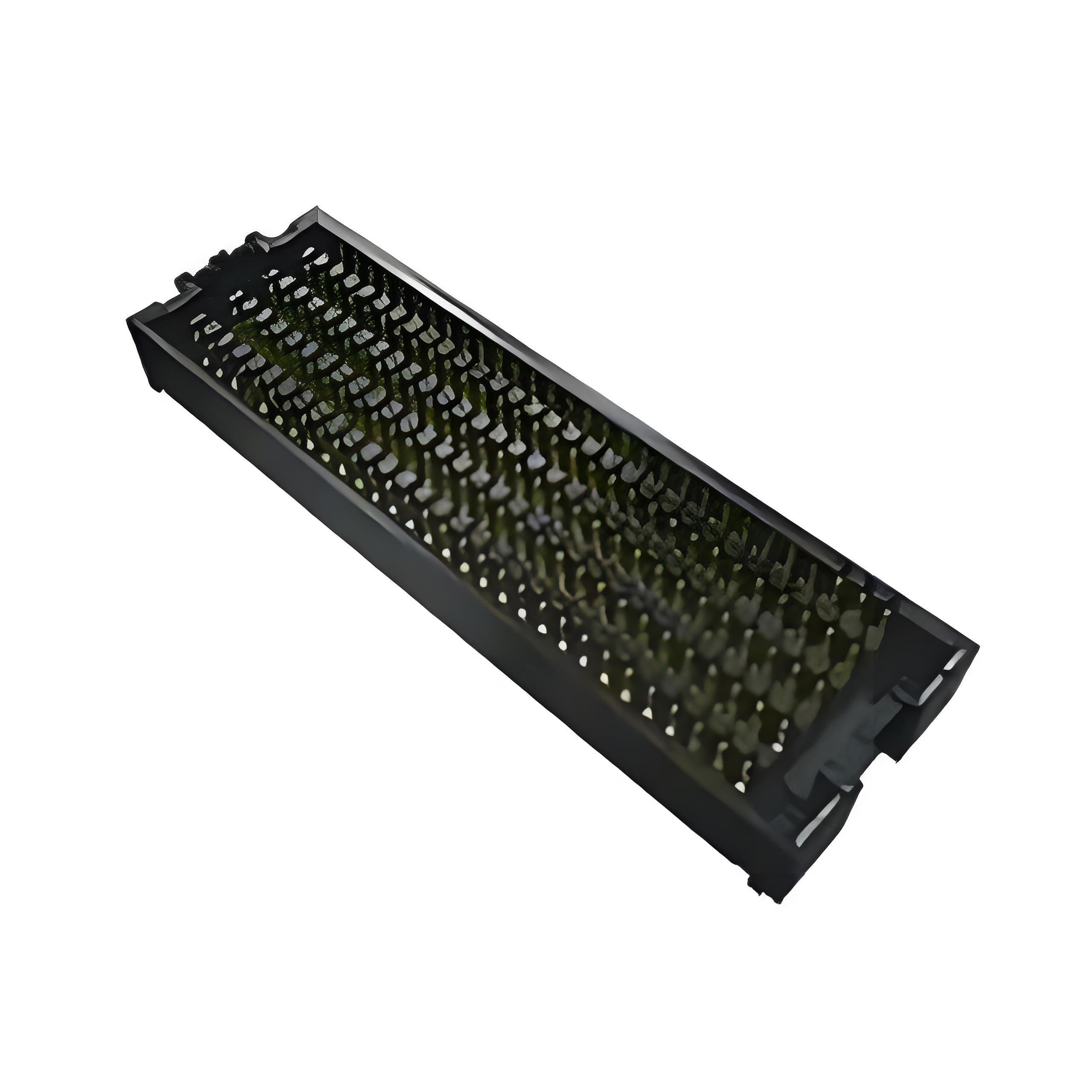

SEAM-50-03.0-L-08-2-A-K-TR
The SEAM-50-03.0-L-08-2-A-K-TR connector is suitable for electronic devices that require high-density connections, especially performing well in scenarios where stable signal transmission and reliable connections are needed. Its 1.27mm pitch gives it …

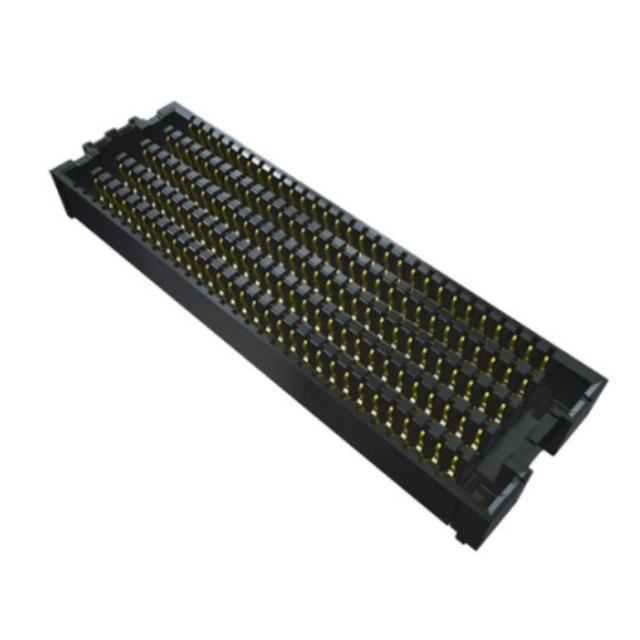

SEAM-50-03.0-L-10-2-A-K-TR
