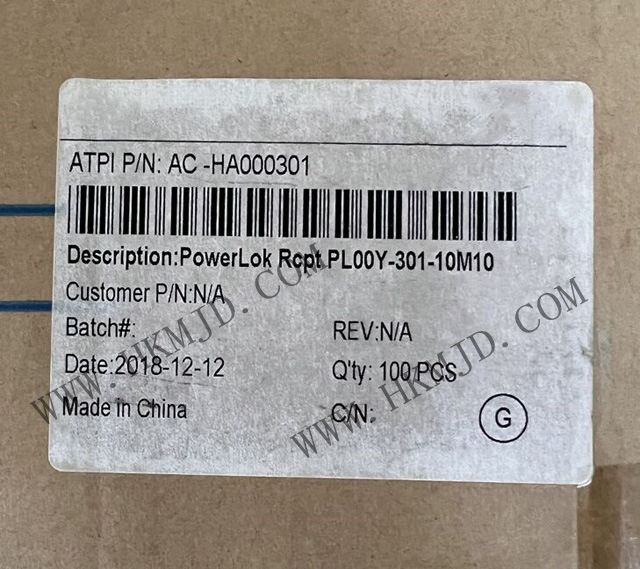

PL00Y-301-10M10 is a single-pole high-voltage connector from Amphenol's PowerLok™ series, designed specifically for high-current busbar connections in electric vehicles, hybrid systems, and energy storage equipment. Its compact metal housing and Y-shaped anti-misalignment key ensure exceptional reliability and safety even in high-vibration and high-temperature environments.

PL00Y-301-10M10 Core Specifications

• Rated current: 300 A continuous

• Rated voltage: 1000 V DC

• Contact resistance: ≤ 0.5 mΩ

• Insulation withstand voltage: ≥ 3.6 kV AC (1 min)

• Operating temperature: –40 °C to +125 °C

• Protection rating: IP67 (mated state); IP6K9K (high-pressure washing)

PL00Y-301-10M10 Structural Features

• Unidirectional socket (Female Panel-Mount Receptacle), panel-mounted

• 10 mm pin specification, M10 busbar hole direct locking, reducing adapter losses

• Y-type key anti-misinsertion: Distinguished from X, U, V, W, etc., preventing misinsertion on-site

• Built-in HVIL (high-voltage interlock): automatically cuts off high voltage when the plug is not properly seated, meeting maintenance safety requirements

• Metal housing + 360° shielding: suppresses EMI, compliant with CISPR-25 standards

• Push-pull secondary lock (CPA), enabling quick insertion/removal with one hand, mechanical life ≥ 500 cycles

PL00Y-301-10M10 Typical Applications

• Electric vehicle battery pack connections

• Motor drive systems

• On-board chargers (OBC)

• DC fast-charging interfaces

• High-voltage distribution units
