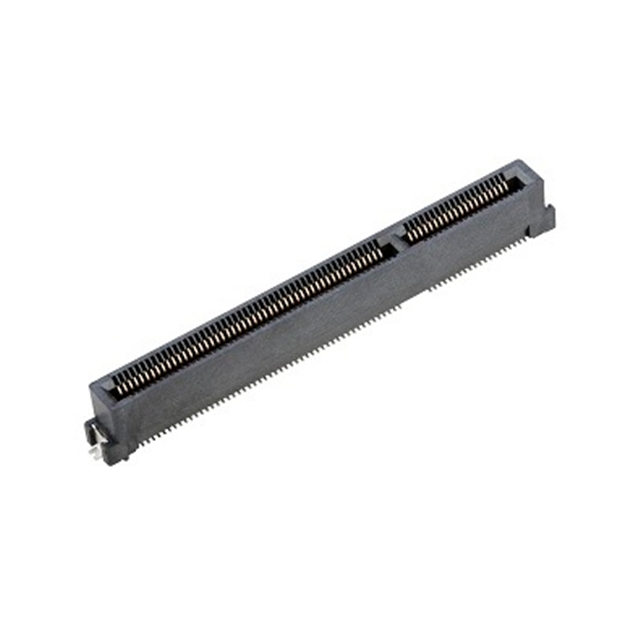

The SE1418023111111 is a 180-position thin connector with 4 power supplies from Amphenol and belongs to the Slim Cool Edge series. This series of connectors offers a versatile and cost-effective high-density solution with a 0.65mm signal pitch design and a variety of board-to-board configurations including right-angle, parallel cards and coplanar.

Application scenario

Slim Cool Edge 0.65mm connectors are widely used in server and storage systems, high-end computing systems, communication baseband, radio units and network business systems ‌. Its high speed and high power characteristics make it an ideal connectivity solution in these areas.

Key Features

The power supply pin spacing is 1.30mm, and the rated current per pin is 3A

The signal pin spacing is 0.65m, and the rated current per pin is 0.5A

The power pins range from 4 to 12, and the signal pins range from 20 to 280

SMT terminated bias signal pin

Open pin field design

Available in vertical, right Angle and straddle mounting configurations for coplanar, sandwich and mid-plate applications

A 1.6mm thick board is supported

Various board mortise options available
