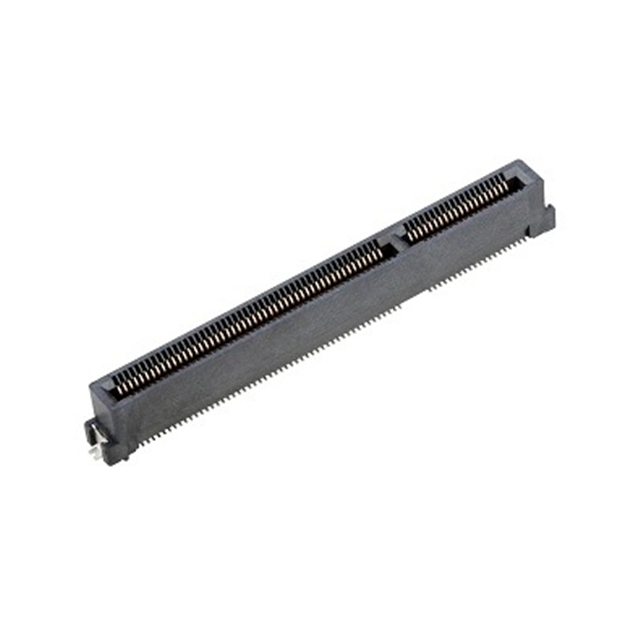

The SE1404023111111 is a 40-position standard card Edge connector from Amphenol, part of the Slim Cool Edge series. This series of hybrid power and signal connectors offers an all-in-one high-speed, high-power card edge package. These connectors provide cost-competitive and high-density solutions.

Features and advantages

Power pin spacing is 1.30mm.

Rated current per pin is 3A

Suitable for low power board to board applications

Signal pin spacing is 0.65mm,

The rated current of each pin is 0.5A

Supports most board end connection applications

The number of power pins is 4 to 12,

The number of signal pins ranges from 20 to 280

Support flexible power-signal combination

Offset pin with surface mount termination

Higher signal integrity

Open pin area design

Supports both single-ended and differential pair signals at speeds up to 32Gb/s (or 56Gb/s PAM4)

Available in vertical, right-angle, and splint configurations for coplanar, parallel card, and mid-plate applications

Supports a variety of applications such as ICT and consumer products

A 1.6mm thick connector is supported

Suitable for most standard board-to-board applications

Different plate lock options are available

Flexible PCB compaction options available

Provides AIC locking function

Secure locked AIC or cable plug

Application scenario

Slim Cool Edge 0.65mm connectors are widely used in server and storage systems, high-end computing systems, communication baseband, radio units and network business systems ‌. Its high speed and high power characteristics make it an ideal connectivity solution in these areas.
