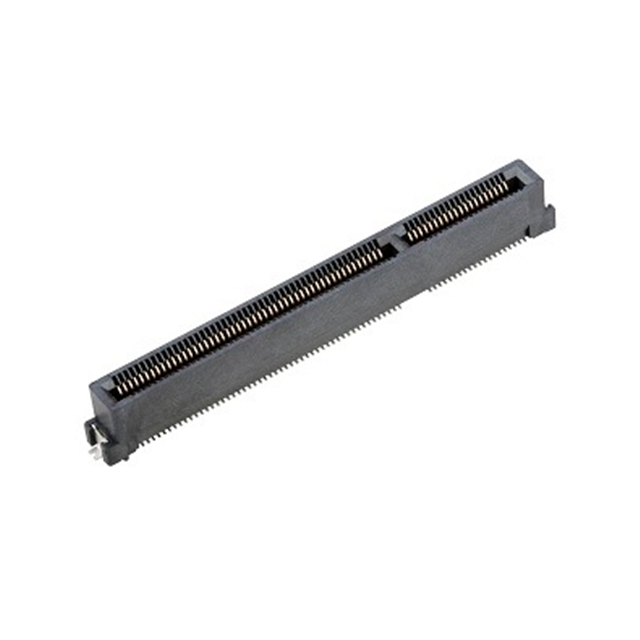

SE1020023111111 is a standard card Edge connector produced by Amphenol Corporation and belongs to the Slim Cool Edge series. Slim Cool Edge Power and Signal hybrid connectors combine high speed with high power in a one-piece limbo package. This series of connectors offers a versatile and cost-effective high-density solution with a 0.65 mm signal pitch design and a variety of board-to-board configurations including right-angle, parallel cards and coplanar.

Product features

Right-angle and splint options can be customized on demand

Transfer speeds up to 32GT/s (or 56GT/s PAM4)

Supports multiple impedance systems

Features

1.30mm power supply pin spacing; Rated current of 3 A per pin

0.65mm signal pin spacing; Rated current of 0.5 A per pin

Power supply pins are 4 to 12; Signal pins range from 20 to 280

Offset signal pins with SMT terminations

Open pin field design

Vertical, right-angle and straddle mounting configurations for coplanar, sandwich and intermediate and backplane applications

A 1.6mm thick connector is supported

Different plate lock options are available

Supports low-power board-to-board applications

Supports most board applications

Flexible support for "power-signal" combination

Provides better overall signal performance

Supports single-ended and differential pairs at speeds up to 32 Gb/s (or 56 Gb/s PAM4)

Supports a wide range of applications from ICT to consumer

Supports most standard board-to-board applications

Allows flexible PCB compaction options
