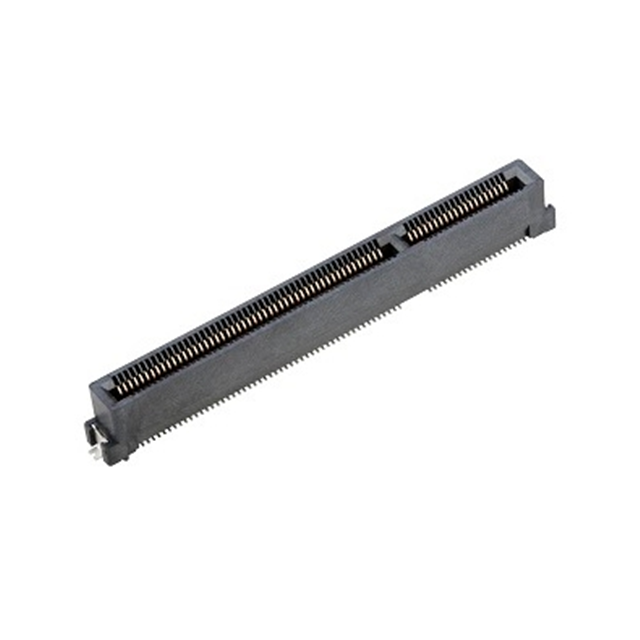

The SE1018023111111 is a 180-position Slim Cool Edge 0.65mm connector. The 0.65mm connector delivers all-in-one high speed (0Gb/ S-32GB /s or 56Gb/s PAM4 functionality) and high power in a card-edge package. The connector also features a modular machining unit that enables multiple power signal combinations to support vertical configurations.

Features

1.30mm power supply pin spacing; Rated current of 3 A per pin

0.65mm signal pin spacing; Rated current of 0.5 A per pin

Power supply pins are 4 to 12; Signal pins range from 20 to 280

Offset signal pins with SMT terminations

Open pin field design

Vertical, right-angle and straddle mounting configurations for coplanar, sandwich and intermediate and backplane applications

A 1.6mm thick connector is supported

Different plate lock options are available

Supports low-power board-to-board applications

Supports most board applications

Flexible support for "power-signal" combination

Provides better overall signal performance

Supports single-ended and differential pairs at speeds up to 32 Gb/s (or 56 Gb/s PAM4)

Supports a wide range of applications from ICT to consumer

Supports most standard board-to-board applications

Allows flexible PCB compaction options

Applications

Servers and storage systems

High-end computing system

Base band

Radio unit

Network

Business system
