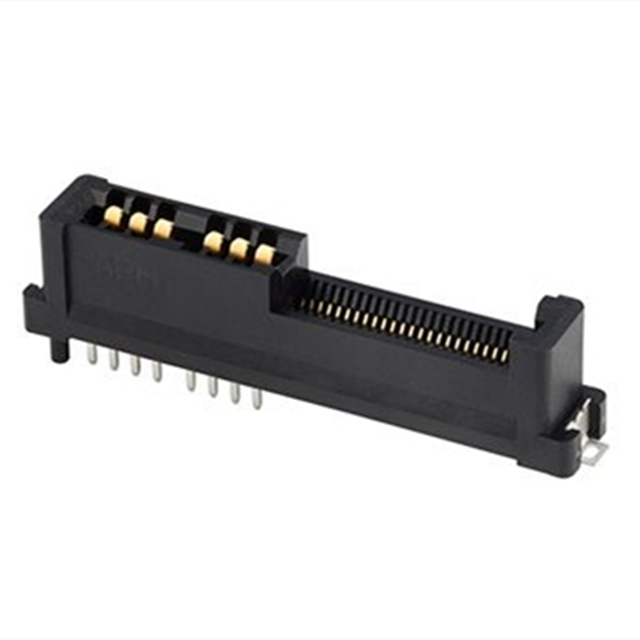

CE1616000110111 is a standard card edge connector in a high speed and high power card edge package. Cool Edge Power and Signal hybrid connectors combine high speed with high power in a one-piece limbo package. This family of multi-purpose solutions meets multiple standards, such as PCIe, SAS, and SATA, and offers board-to-board configurations such as parallel cards, coplanar, and midboard/backplane.

Key Features

Right-angle and straddle mounting options are available

Cable board option available

High-speed 0Gb/ S-32GB /s (or 56Gb/s PAM4) function

Supports multiple impedance systems

Through hole power supply pin end

The power supply pin spacing is 9.10mm, and the rated current per pin is 25A

Built-in guide block options

The signal pin spacing is 0.80mm, and the rated current per pin is 0.5A

Supports most board applications

Supports medium to high-power BTB applications

Delivers high power through multiple power layers

A 1.6mm thick board is supported

Compared with standard PCIe, it is slimmer

It can be used as a space-saving alternative to standard devices

Basic parameter

Model: CE1616000110111

Brand: Amphenol

Position: 6 power supplies, 160 signal pins

Pitch: 0.8mm

Circuit board thickness: 1.6mm

Operating temperature: -55 °C to + 105°C
