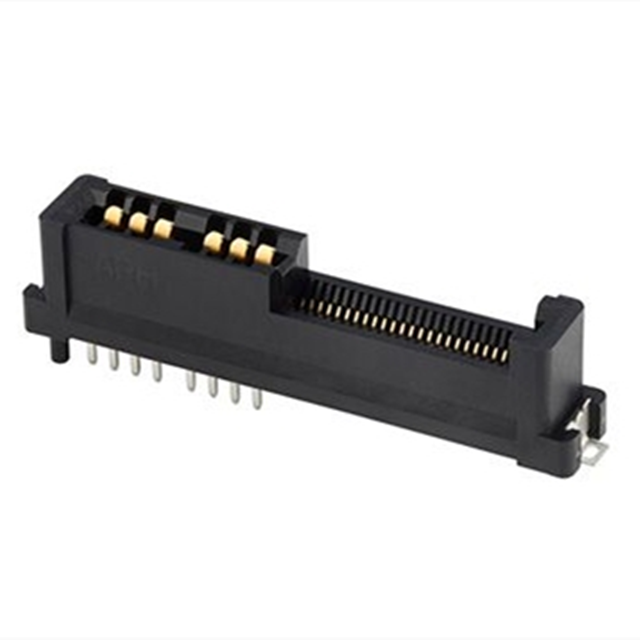

CE1418000110111 is a compact high-speed signal and power connector designed for a wide range of applications. The Cool Edge 0.80mm connector meets several standards, such as PCIe and Serial Attached SCSI (SAS)/ Serial Advanced Technology Accessories (SATA).

Basic parameter

Brand: Amphenol

Location: 4 power supplies, 180 signal pins

Pitch: 0.8mm

Circuit board thickness: 1.6mm

Operating temperature: -55 °C to + 105°C

Main characteristics

Right-angle and straddle mounting options are available

Cable board option available

High-speed 0Gb/ S-32GB /s (or 56Gb/s PAM4) function

Supports multiple impedance systems

Through hole power supply pin end

The power supply pin spacing is 9.10mm, and the rated current per pin is 25A

Built-in guide block options

The signal pin spacing is 0.80mm, and the rated current per pin is 0.5A

Supports most board applications

Supports medium to high-power BTB applications

Delivers high power through multiple power layers

A 1.6mm thick board is supported

Compared with standard PCIe, it is slimmer

It can be used as a space-saving alternative to standard devices
