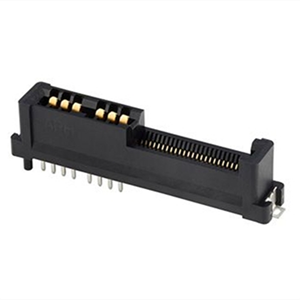

CE1414000110111 is a standard card side connector for use in a variety of electronic devices to ensure stable electrical connections and signal transmission ‌. Cool Edge Hybrid power and Signal connectors offer all-in-one high-speed and high-power card edge packages. These versatile solutions meet multiple standards such as PCIe, SAS/SATA, and offer a variety of BTB configurations such as sandwich, coplanar, and midboard/backplane.

Basic parameter

Model: CE1414000110111

Location: 4 power supplies, 140 signal pins

Pitch: 0.8mm

Circuit board thickness: 1.6mm

Operating temperature: -55 °C to + 105°C

Features and advantages

The pin spacing is 9.10 mm, and the rated current of each pin is 25A

Supports medium to high power board-to-board applications

Signal pin spacing is 0.80 mm

The rated current of each pin is 0.5A

Supports most board end connection applications

The number of power pins is 2 to 6, and the number of signal pins is 20 to 200

Support flexible power-signal combination

The through hole power pin is terminated

Higher power through multiple power layers

Open pin area design

Supports both single-ended and differential pair signals at speeds up to 32Gb/s (or 56Gb/s PAM4)

Available in vertical, right-angle and splint configurations for coplanar, parallel card and backplane applications

Supports a variety of applications such as ICT and consumer products

Built-in guide block options

Anti-mismatch and suitable for blind insertion

Support 1.6mm thick adapter plate

Suitable for most standard board-to-board applications

Thinner than standard PCIe

More space saving compared to standard connectors
