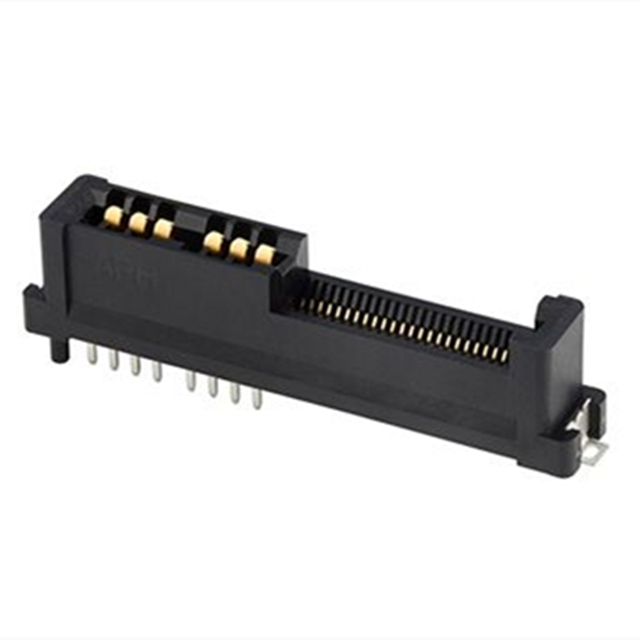

CE1210000110111 is a connector from Amphenol Corporation, belonging to the Cool Edge 0.80mm connector series. Cool Edge Power and Signal hybrid connectors combine high speed with high power in a one-piece limbo package. This family of multi-purpose solutions meets multiple standards, such as PCIe, SAS, and SATA, and offers board-to-board configurations such as parallel cards, coplanar, and midboard/backplane.

Features and advantages

The spacing between pins is 9.10mm, and the rated current of each pin is 25A

Supports medium to high power board-to-board applications

The signal pin spacing is 0.80mm

The rated current of each pin is 0.5A

Supports most board end connection applications

The number of power pins is 2 to 6, and the number of signal pins is 20 to 200

Support flexible power-signal combination

The through hole power pin is terminated

Higher power through multiple power layers

Open pin area design

Supports both single-ended and differential pair signals at speeds up to 32Gb/s (or 56Gb/s PAM4)

Available in vertical, right-angle and splint configurations for coplanar, parallel card and backplane applications

Supports a variety of applications such as ICT and consumer products

Built-in guide block options

Anti-mismatch and suitable for blind insertion

A 1.6mm thick connector is supported

Suitable for most standard board-to-board applications

Thinner than standard PCIe

More space saving compared to standard connectors
