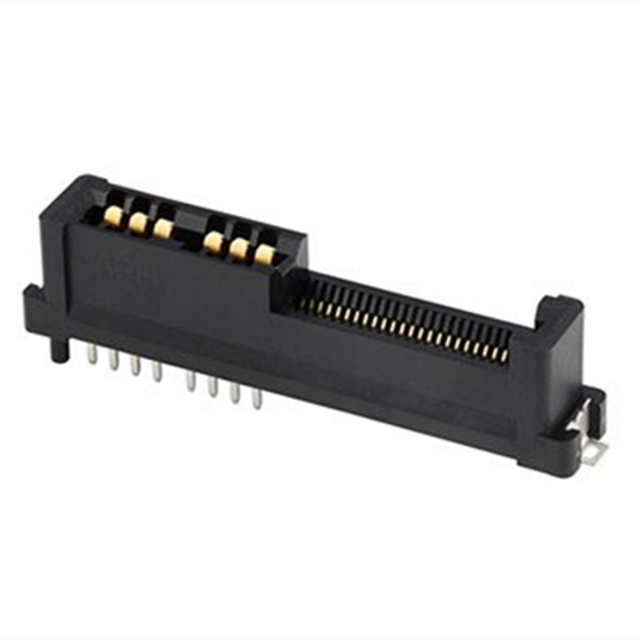

Amphenol's (CE1202000110111) Cool Edge Power and Signal hybrid connector offers an all-in-one high-speed and high-power card edge package. These versatile solutions meet multiple standards such as PCIe, SAS/SATA, and offer a variety of BTB configurations such as sandwich, coplanar, and midboard/backplane.

Features

9.10mm power supply pin spacing; Rated current of 25 A per pin

0.80mm signal pin spacing; Rated current of 0.5 A per pin

The number of power supply pins is 2 to 6; The number of signal pins is 20 to 200

Through hole power supply pin end

Open pin field design

Vertical, right Angle and straddle mount configurations for coplanar, sandwich and backplane applications

Built-in guide block options

A 1.6mm thick connector is supported

Slimmer form factor than standard PCIe®

Supports medium to high power board-to-board applications

Supports most board applications

The "power-signal" combination can be flexibly configured

Higher power through multiple power layers

Supports single-ended and differential pairs at speeds up to 32 Gb/s (or 56 PAM4 Gb/s)

Supports a wide range of applications from ICT to consumer

Accommodates misalignment and promotes blind matching

Supports most standard board-to-board applications

Can be used as a space-saving alternative compared to standard
