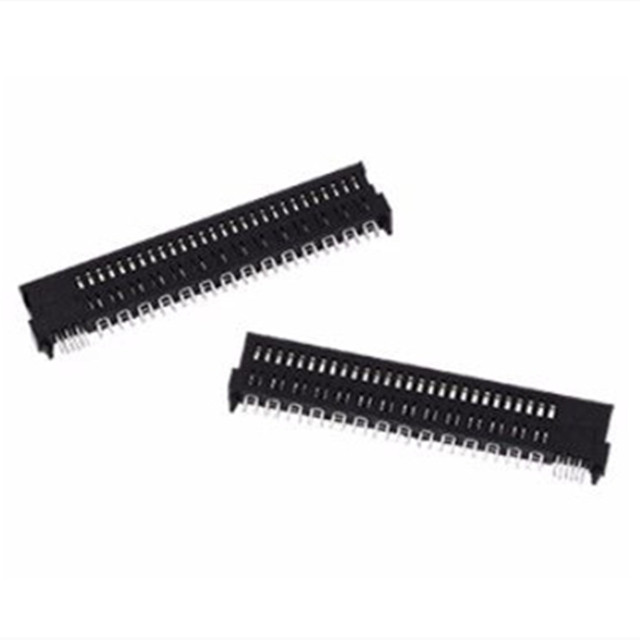

The 10121506-320022BLF device is a high power card edge (HPCE®) connector from Amphenol for demanding applications that require high linear current density and low power consumption. The HPCE features a very low package height (7.5mm) and, like Amphenol ICC's other power solutions, uses low-cost, highly reliable, stamped power contact technology.

HPCE connector features

The current rating for each contact beam is 9 A (multiple power contacts are fully charged), and the temperature rise does not exceed 30°C in no wind conditions.

The flat profile (2.8mm cross-mount, 7.50mm right-angle mount) maximizes air volume for efficient system cooling.

One-piece components enable cost-effective power delivery for 1U and 2U power supplies or distribution applications.

The highly ventilated housing design maximizes heat dissipation.

Vertical, right-angle and cross-mount options are available, as well as power contacts for distribution and signal contacts for control.

The number and height of the power supply and signal contacts can be configured to meet custom power needs.

Polarizing housing options are available to ensure the correct orientation of the adapter plate.

Plastic housing and mounting lug options are available for polarizing host PCBS and securing connectors during wave soldering.

Target market and application

AC/DC pluggable power supply in data, telecommunications and data communication/networking

Industrial PC

Industrial control and instrumentation

Medical treatment
