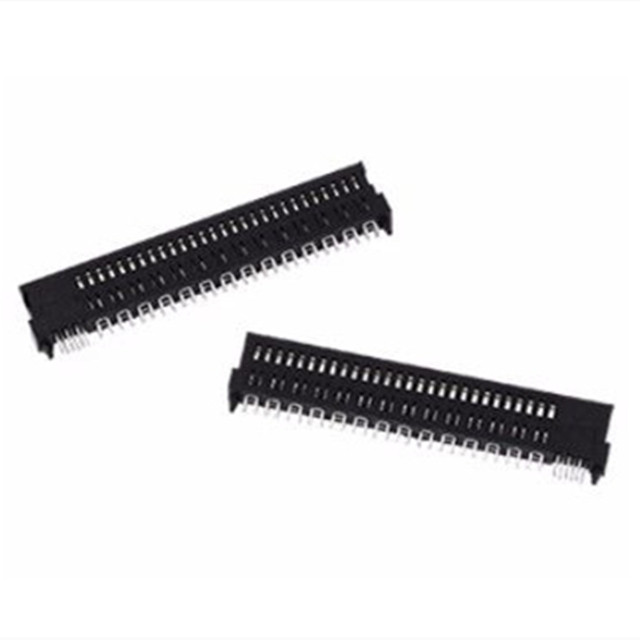

The 10121506-320424DLF is a high-power Card Edge (HPCE®) connector from Amphenol featuring an innovative power contact and housing design that provides a more compact, thinner package for more demanding AC and DC power supplies as well as external card applications. HPCE connectors are ideal for the next generation of 1U/2U servers, storage chassis, telecommunication equipment, and data communication/networking equipment.

Features and advantages

Under the condition that the temperature rise of stationary air does not exceed 30°C. The current rating for each contact beam is 9A (multiple power contacts are fully energized.

Low package height (2.8 mm for cross-mount option; The right Angle option is 7.50 mm) optimizes air flow and allows the system to cool quickly.

One-piece components enable low cost power supply for 1U and 2U power or distribution applications.

The well-ventilated plastic shell design achieves maximum heat dissipation.

Available in vertical, right Angle and straddle options, and equipped with power contacts for distribution and signal contacts for power control.

The number and location of power and signal contacts are highly configurable to meet custom power needs.

The polarized plastic case option provides a guarantee for the correct orientation of the mating plate.

Plastic plastic housing and mounting lugs (polarized for PCB motherboard) are available to hold the connector in place during wave soldering.
