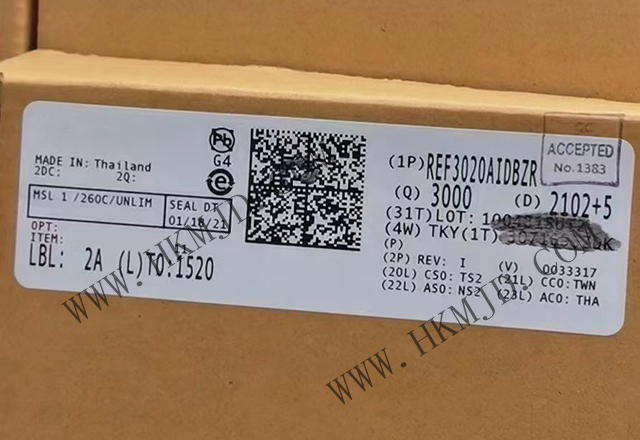

For picture reference, please see the specifications
< >

Commodity Model:REF3020AIDBZR

Trade Name:REF3020AIDBZR

Data Manual:REF3020AIDBZR.pdf

Brand:TI

Particular Year:23+

Package:SOT23-3

Delivery Date:New and Original

Stock: 50000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
REF3020AIDBZR
Package
SOT23-3
Describe
2.048V, 50ppm/°C, 50µA input series (band gap) voltage reference in 3-pin SOT-23 package

Product Description

The REF3020AIDBZR is a family of precision, low power, low dropout voltage references in a miniature 3-pin SOT-23 package.The REF3020AIDBZR offers excellent temperature drift and initial accuracy with a quiescent current of 42µA (typical).


The REF3020AIDBZR offers low power consumption and relatively high accuracy, making it ideal for loop-powered industrial applications such as pressure and temperature transmitter applications. to +125°C.


Under zero load conditions, the REF3020AIDBZR is powered from a supply within the 1mV output voltage range. Engineers can take full advantage of the low dropout voltage, small size and low power consumption of the REF30xx family of devices in portable and battery powered applications.


Features

- Miniature package: SOT-23-3

- Low voltage drop: 1mV

- High output current: 25mA

- High accuracy: 0.2%

- Low IQ: 42 µA (typical)

- Excellent temperature drift rating performance:

- 50ppm/°C over 0°C to 70°C (maximum)

- 75ppm/°C (max) over the -40°C to +125°C range


Applications

- Temperature and pressure transmitters

- Portable, battery powered devices

- Data acquisition systems

- Medical equipment

- Handheld test equipment

Associated Products

Model

Brand

Package

Quantity

Describe

ADR3550WARMZ

ADI

MSOP-8

3000

An 8ppm/°C, 5V reference voltage source certified for automotive applications

ADR3540WARMZ

ADI

MSOP-8

3000

A reference voltage source of 8ppm/°C and 4.096V certified for automotive applications

ADR3530WARMZ

ADI

MSOP-8

2500

An 8ppm/°C, 3.0V reference voltage source certified for automotive applications

ADR3525WARMZ

ADI

MSOP-8

3000

An 8ppm/°C, 2.5V reference voltage source certified for automotive applications

LT6654BIS6-3.3

ADI

SOT-23-6

3000

20ppm/°C precision, wide power supply range, high output drive, low noise reference

LT6657BHMS8-5

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657BHMS8-3

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657BHMS8-2.5

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657BHMS8-1.25

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657AHMS8-5

ADI

MSOP-8

3000

1.5ppm/°C drift, low noise, buffering reference
