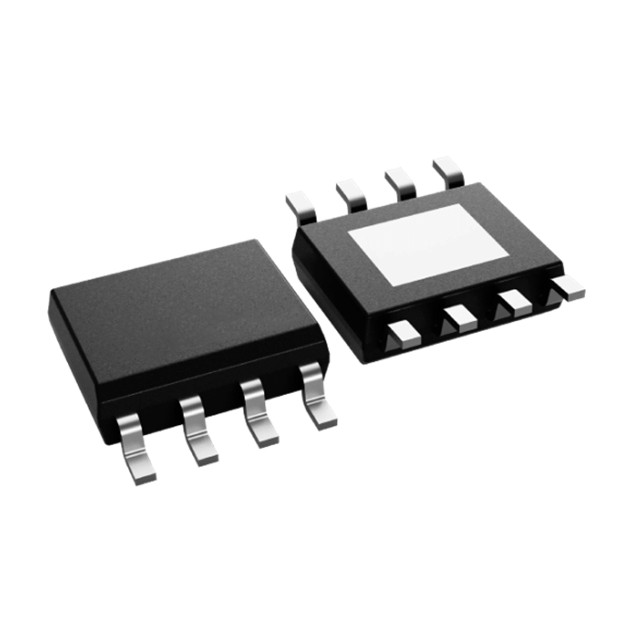

The TPS92691QPWPRQ1 is a general purpose LED controller that supports a range of boost or buck driver topologies. The device implements fixed frequency peak current mode control technology, programmable switching frequency, ramp compensation and soft start timing. A high voltage (65V) rail-to-rail current sense amplifier is incorporated, allowing direct measurement of LED current using either high-side or low-side series sense resistors. The amplifier can be used to achieve low input offset voltages and better than ±3% LED current accuracy over the 25°C to 140°C junction temperature range and 0 to 60V output common mode voltage range.

Features

Wide input voltage range: 4.5V to 65V

Wide output voltage range: 2V to 65V

Low input offset rail-to-rail current sensing amplifier

Better than ±3% accuracy of light emitting diode (LED) current over a junction temperature range of 25°C to 140°C

Compatible with high-side and low-side current sensing components

High impedance analogue LED current regulation input (IADJ) with contrast ratio above 15:1

Over 1000:1 series field effect tube (FET) pulse width modulation (PWM) dimming ratio when using the integrated series N-channel dimming driver interface

Continuous LED current monitoring output for system fault detection and diagnostics

Programmable switching frequency for synchronisation with external clock

Programmable soft-start and ramp compensation

Comprehensive fault protection circuitry including supply voltage (VCC) undervoltage lockout (UVLO), output overvoltage protection (OVP), cycle-by-cycle switching current limit and thermal protection

TPS92691-Q1: Automotive Q100 Class 1 compliant

Applications

TPS92691-Q1: Automotive exterior lighting applications

Architectural lighting and general lighting applications
