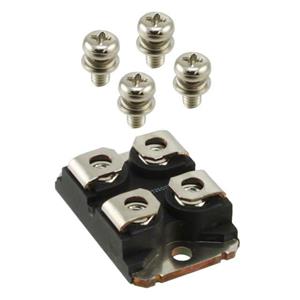

Trade Name:IXYN50N170CV1
Data Manual:IXYN50N170CV1.pdf
Brand:IXYS
Particular Year:23+
Package:SOT-227
Delivery Date:New original
Stock: 1000pcs
The 1700V IXYN50N170CV1 is a discrete ultra-light pass through (XPT™) high voltage IGBT device. Compared with other IGBTs, this series of IGBTs has the advantages of higher efficiency, no need to series multiple devices, and reliability of the power system.
Device Specifications:
IGBT type: -
Voltage-emitter breakdown (Max) : 1700 V
Current - Collector (Ic) (Max) : 120 A
Current-collector pulse (Icm) : 485 A
Vce(on) (Max.) for different Vge and Ic: 3.7V@15V, 50A
Power - Max: 880 W
Switching power: 8.7mJ (on), 5.6mJ (Off)
Input type: Standard
Grid charge: 260 nC
Td (On/off) at 25°C: 22ns/236ns
Test conditions: 850V, 50A, 1ohms, 15V
Reverse recovery time (trr) : 255 ns
Operating temperature: -55°C ~ 175°C (TJ)
Installation type: Base installation
Package/housing: SOT-227-4, miniBLOC
Supplier device package: SOT-227B
Basic product number: IXYN50
