Description:

The ADL6010SCPZN is a versatile microwave spectrum wideband envelope detector that offers excellent accuracy and extremely low power consumption (8 mW) in a single, easy-to-use 6-pin package. The baseband voltage output of this device is proportional to the instantaneous amplitude of the radio frequency (RF) input signal. Its RF input has a very small slope change in order to envelope the output transfer function from 0.5 GHz to 43.5 GHz.

Applications:

Microwave point-to-point link

Microwave instrument

Radar measurement system

Features:

Schottky diode detector with linearity

Broadband 50Ω input impedance

Accurate response range with minimal slope change: 0.5 GHz to 43.5 GHz

Input range: −30 dBm to +15 dBm, for example, 50 Ω

Excellent temperature stability

2.1 V/VPEAK (output voltage based on input peak voltage) Slope (10 GHz)

Fast envelope bandwidth: 40 MHz

Fast output rise time: 4 ns

Low power consumption: 1.6mA (5.0V)

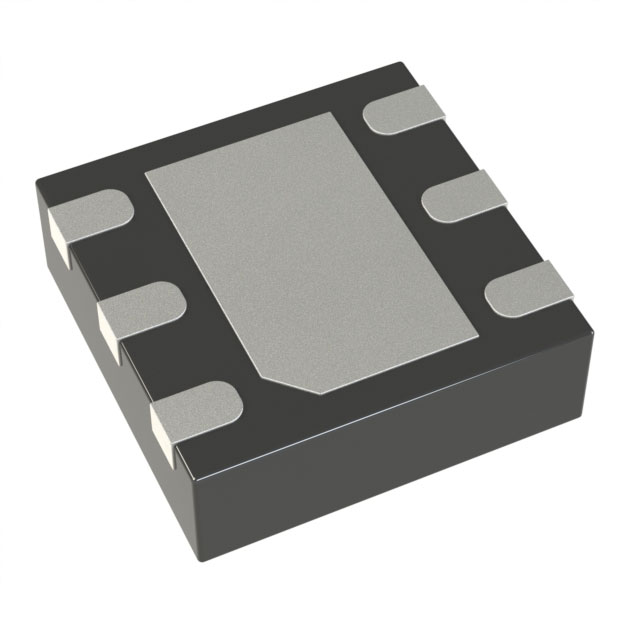

2 mm x 2 mm, 6-pin LFCSP package
