[Renesas] R5F565NEDDBG is a mainstream RX microcontroller with RXv2 core, large-capacity RAM, and enhanced security, connectivity, and human machine interface (HMI) capabilities.

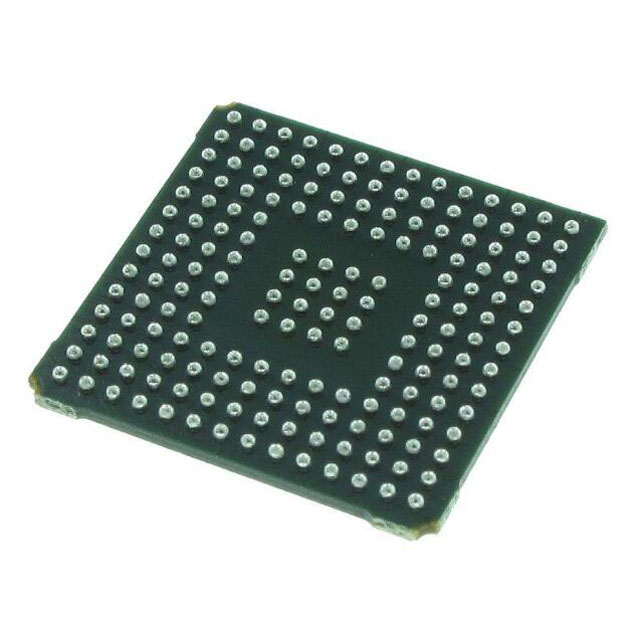

Model: R5F565NEDDBG (RX65N Microcontroller)

Package: LFBGA-176

Type: 32-bit Microcontroller - MCU

R5F565NEDDBG - Product Specification:

Series: RX65N

Mounting Style: SMD/SMT

Package / Case: LFBGA-176

Core: RXv2

Programme Memory Size: 32 kB

Data RAM size: 640 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 120 MHz

Number of inputs/outputs: 136 I/Os

Supply voltage - min: 2.7 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 85 °C

DAC resolution: 12 bit

Interface type: CAN, I2C, SCI

R5F565NEDDBG - Key Features:

RXv2 core 120MHz operating frequency (34 CoreMark/mA), single precision FPU

2.7V to 3.6V operating voltage

Extensive package line-up: 100-pin to 176-pin

Equipped with various communication interfaces such as Ethernet, USB, CAN, SD host/slave interface and quad SPI.

Program Flash up to 2MB, SRAM up to 640KB

- Dual library function for easy firmware updates

Human Machine Interface

- TFT-LCD controller and 2D graphics engine reduce CPU load when running LCD display.
