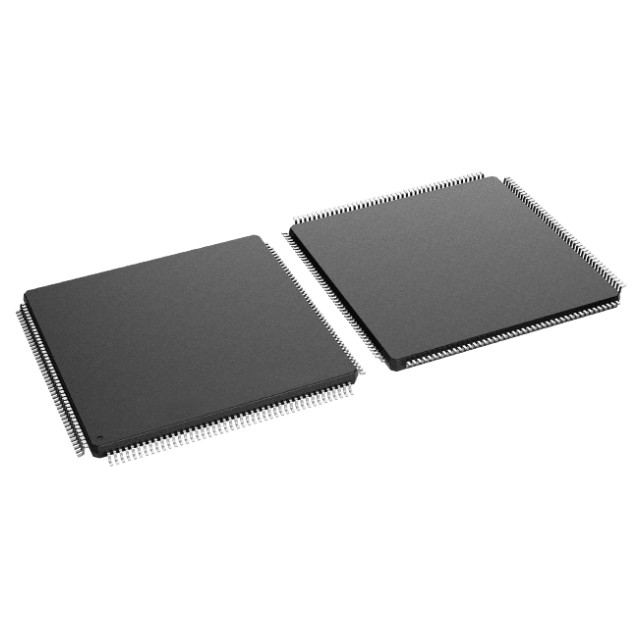

The TMS320F2812PGFS is a C2000™ 32-bit MCU with high-performance CMOS technology, a 32-bit CPU, and a low-power core. The TMS320F2812 contains 128K x 16 embedded flash memory divided into four 8K x 16 sectors and six 16K x 16 sectors.

The device also contains a 1K x 16 OTP memory with an address range of 0x3D 7800-0x3D 7BFF. Users can erase, program, and validate flash sectors individually without making any changes to other sectors.

Specifications:

Product: TMS320F2812PGFS

Core: C28x

Number of cores: 1 Core

Max clock frequency: 150 MHz

Package/housing: LQFP-176

Program memory size: 256 kB

Data RAM size: 36 kB

L1 cache instruction memory: -

L1 Cache data storage: -

Working power supply voltage: 1.9V

Series: TMS320F2812

Brand name: C2000

Installation style: SMD/SMT

Operating temperature: -40°C ~ 125°C

Package: Tray

ADC resolution: 12 bit

Trademark: Texas Instruments

Data bus width: 32 bit

I/O voltage: 3.3V
