Trade Name:Audio Amplifiers
Brand:ST
Particular Year:24+

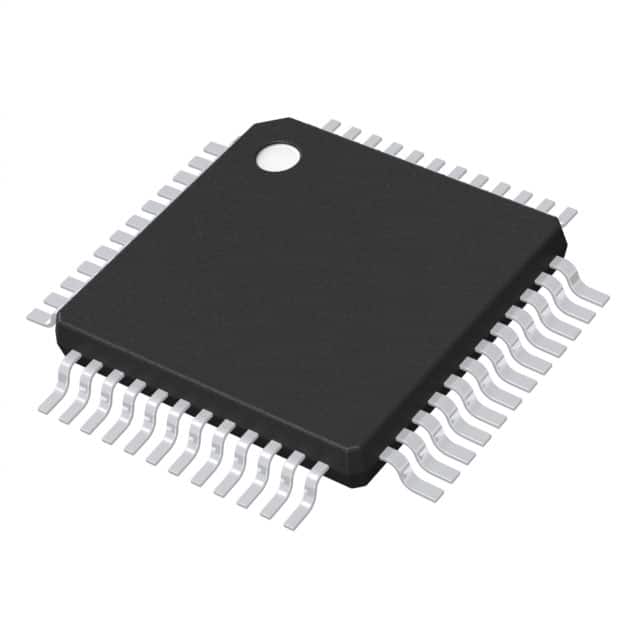

Package:LQFP-48
Delivery Date:New and Original
Stock: 2000pcs
HFA80A-F2Y is a class-D audio amplifier, specifically designed for automotive applications in BCD9s technology.
HFA80A-F2Y integrates advanced solutions for an excellent radiated noise immunity combined with the advantages of 2 MHz switching PWM class-D output stages. This configuration allows outstanding audio performances while designing a compact and inexpensive application.
Specifications Of HFA80A-F2Y
Class:Class-D
Supply Voltage - Min:4.5 V
Supply Voltage - Max:18 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 125 C
Input Type:Analog
Moisture Sensitive:Yes
Number of Channels:4 Channel
Feature Of HFA80A-F2Y
AEC-Q100 qualified
Supply operating range: 4.5 V - 18 V
EMI compliant to CISPR25 level V
Class-D BTL outputs
Battery load dump compatible (40 V)
Reduced size and cost of output LC thanks to 2 MHz switching PWM
Extended audio band support
Thermal protection and thermal warning (4 thermal warnings)
DAM (digital admittance meter)
Synchronization input/output pin
Immune to pop/tick noise at turn on/off, battery variations, during diagnostic
Legacy (backup mode without I2C control)
ESD integrated protections (2 kV HBM, 500 V/750 V corner CDM)
